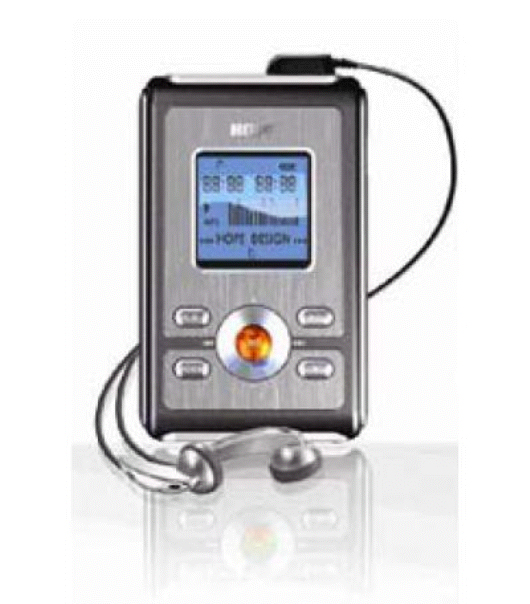

Pocket-size Music Jukebox -20GB HDD MP3/WMA/VBR music player

Pocket-size Music Jukebox -20GB HDD MP3/WMA/VBR music player

Model:
HDD-200 HDD Player

Detail Specifications / Descriptions

Features:
20GB high capacity for data storage
MP3/WMA/VBR music playback
abt.5000 songs (hundreds albums) for 20GB HDD Music Jukebox
USB 2.0 interface and support USB 1.1 Host function for data transfer
Stereo audio effect
User-friendly Interface Design
High Quality Aluminum Design
LCD Remote Controller is available

Specifications:

Pocket-size Music Jukebox with hundreds albums
(abt.5000 songs for 20GB HDD Music Jukebox)
MP3,WMA, VBR music playback (OGG optional in future)
Support MP3 Line-in encoder
FM Radio with channel presets
Support music file containing lyric
Support Firmware upgrade
Support Reset function: Press reset hole when system stuck
6 EQ: NORMAL, CLASSIC, ROCK, JAZZ, Live, USER's EQ
3D Sound Effect:
SRS(3D+High Frequency) / TruBass (Ultra Deep Bass)
Adjust 10 levels each (level1 to level10)
Repeat: REPEAT One Song, REPEAT FOLDER, Repeat All FolderShuffle One Song, Shuffle FOLDER, Shuffle All Folder, Section Repeat (A-B)

Hardware:

Built-in 20G Hard Disk (Toshiba 1.8")
LCD Display:
128x128 dot matrix LCD with Blue EL backlight
2 bit 4 grayscale/8 lines
High quality aluminum housing design
LCD Remote Controller is available
Compatible with USB 2.0 specification, Plug & Play
Support USB 1.1 Host function
Audio Support: Playback MP3,WMA, VBR (OGG optional)
Built-in FM Tuner support 20 preset
Auto scan/auto memory function
MP3 Line-in Encoder
Compatible with USB2.0 specification and support USB1.1 Host function
Headphone: 15mW(L) + 15mW(R) at 16 Ohm max volume

Power Supporting:

Built-in rechargeable LITHIUM-POLYMER battery (1300mAh)
Full charge Time 3 hours
Quick-charge: 1 hour (charge to 70% of battery capacity)
Playback time 12 hours plus

Operating Environment:

Operating Temp: Read: -10?C~ 65?C, Write: 5?C~ 65?C
Frequency Response: 200Hz ~ 20,000 Hz
S/N: >85 dB (with a filter at 16 Ohm Load) THD: < 0.1%

O/S Supporting:

MICROSOFT WINDOWS 98/SE/ME/2000/XP, MAC OS 9.X , 10.X


Approvals:

CE, FCC Certificates

Dimension:

98 x 60 x 24 mm

Package & Accessories:

HDD MP3 Player
Colorful Retail Box
Adaptor for Recharge
USB Cable
Encoding Cable
User's Manual
Stereo Earphone
Bundled CD (USB Driver for Windows 98 Users and User's Manual)
