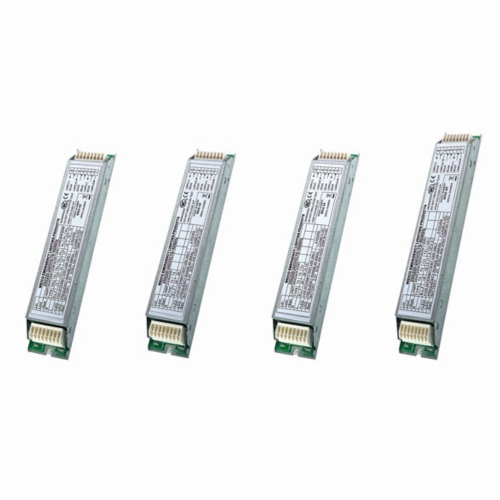

CONVERSION MODULE KITS(T5)
CONVERSION MODULE KITS(T5)

Model:WA542

Detail Specifications / Descriptions

Model WA33-36 WA43-58 WA43-36 WA53-70 WA53-35
Feaures
Lsw/Lch Interlock Not for H.f. Not for H.f. V V V
Cathode heating - - - - V
5 Pole Relay 4 Pole Relay 4 Pole Relay V V V
Technical:
Battery
Voltage/Capacity
3.6Vdc 4.0Ah Ni-cd 4.8Vdc 4.0Ah Ni-cd 4.8Vdc 4.0Ah Ni-cd 6.0Vdc 4.0Ah Ni-cd 6.0Vdc 4.0Ah Ni-cd
Duration 3 hours 3 hours 3 hours 3 hours 3 hours
Battery Format 3 cells 2 cells + 2 cells 2 cells + 2 cells 3 cells + 3 cells 3 cells + 3 cells
Lamp range and BLF
(Ballast Lumen Factor) [Please note that Amalgam lamps may not be suitable for
emergency lighting use.] :
8W T5 0.19
11W PLS 0.20
13W
PL 0.17
18W T8/PL0.12
24/26W PL0.10
36W T8/PL0.08
18W T8 0.14
36W T8 0.08
58W
T8 0.07
8W T5 0.28
11W PLS 0.28
13W
PL 0.23
16W 2D 0.20
18W T8/PL 0.15
24/26W PL 0.14
28W 2D 0.14
36W
T8/PL 0.10
38W 2D 0.12
40W PL0.15
55W
PL0.10
58W T8 0.09
70W T8 0.08
14W T5 0.25
21W T5 0.20
28W
T5 0.17
35W T5 0.17
Mains Supply style="FONT-SIZE: x-small">230-240V 50/60Hz
Supply Load Less
than 50 mA
Charging Current 0.17
~ 0.3 A
Discharge Current 1.2 A
Nominal
Operating
Frequency
20 ~
50 Khz
Ambient Temperature
Range
0 -
50℃
Max. Module
Temp.
style="FONT-SIZE: x-small">Tc max = 75℃ (Centre of Module side)
Based on the
ICEL1001 calculation method, the life is more than 70,000 hours at Tlife of 50℃
measured at the centre of the module side.
Max. Continuous cell
temp for 4 years life
style="FONT-SIZE: x-small">55℃
Standards style="FONT-SIZE: x-small">EN60924 / EN61347-2-22
Dimension Fixing
Centres
H 30mm
x W 40mm x L 215mm
Weight (inc.
battery)
0.9 kg 1.0kg 1.0kg 1.10kg style="FONT-SIZE: x-small">1.10kg
