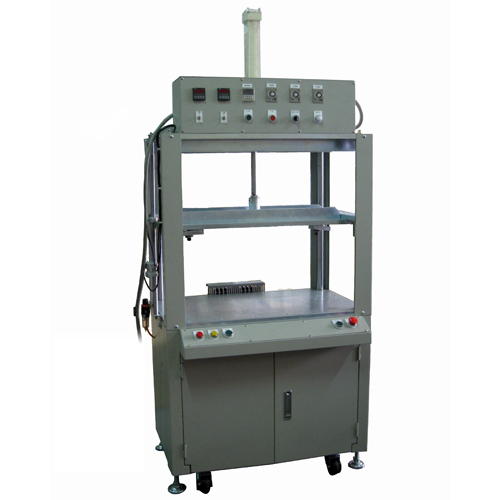

Hydraulic Hot Press
Hydraulic Hot Press

Model:SH6035-H-Oil

Detail Specifications / Descriptions

Features:
‧Consistent power output and operating pressure
‧High-low pressure activated hydraulic cylinder
‧Hydraulic cylinder can be slowed, pressure-reduced when hot platens contact items to be welded
‧Set length and time are adjustable depending on material to be welded

Functions:
‧Platens are heated to melt surfaces of items to be welded for pressure riveting, sealing plastic tightly with different materials
‧Hot spot-melting, riveting and congealing are done as time-set procedures
‧Inserts, embeds screws

Sample products: Car lamp circuit boards, LED circuit boards, plastic pump propellers/impellers/blades and car-door pulls , and inner parts for side-view mirrors.

Model No.

SH6035-ON

SH6035-OD

Attachments
Operational Mode Operation of Upper and Lower Platens Hydraulic



Clamping Mode Upper Platen

Clamp

Lower Platen

Clamp

Circuit Control

Relay

Thermometer

2 sets
(Alarms Included)

Air Detector



Protection Infrared Photoelectric Detector



Optional

  Air-Activated PC Door

Hydraulic Motor

1 HP

1 HP

Voltage

220 / 380 V

220 / 380 V

Electric current (Thermal Platen Excluded)

3 A

3 A

Max. Current Per Display

30 A

30 A

Max. Operation Area

650 x 350 x 600

650 x 350 x 600

Max. Mold Spec.

500 x 300 x 300

500 x 300 x 300

Min. Welding Length

180 mm

180 mm

Machine Dimensions

1000 x 750 x 2060

1000 x 750 x 2060

Crate Dimensions

1200 x 850 x 2300

1200 x 850 x 2300

N.W.

450 kg

450 kg

G.W.

580 kg 580 kg
Code Descriptions
‧O: Hydraulic ‧N: Standard ‧C: Clamp ‧D: Safety door
