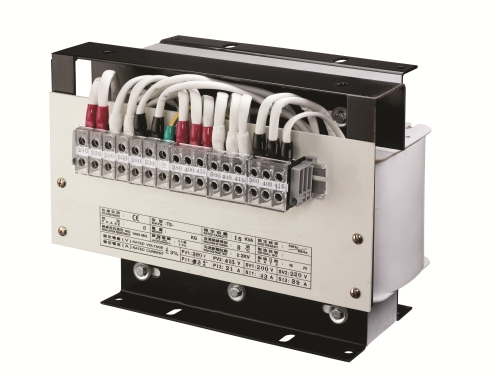

Power Transformer
Power Transformer

Model:CTAT, CTIT Country of Origin:Taiwan

Detail Specifications / Descriptions

-SINGLE PHASE-
1.Capacity: 0.1KVA~100KVA
2.Frequency: 50/60Hz
3.Nominal Voltage: Less than 600V( ex: 220V,380V,415V, and etc)
4.Standard: IEC762, EMC6100, CSAC22, CNS12681
5.A class wires
6.CE Certificate Terminal, safe and rise 50% of efficiency
7.Thermal treatment for cores, hence, it saves more electricity
8.Temp. Rise: A, B, F, H class
9.High Permeability of silicon steel sheet, low noise & high efficiency, and H class copper wire and insulation materials.

- OPTIONAL ITEMS:
●Auto type
●Isolated type
●Multi-input & output
●Terminal with color wires
●Transparent & safe Cover
●Copper /Aluminum winding set
●Terminal Type(CE&UL, and etc)
●Fuse kits
●Outside Mental Box


-THREE PHASE-
1. Capacity: 0.1KVA~100KVA
2. Frequency: 50%60Hz
3. Nominal Voltage: Primary &Secondary Voltage should be less than 600V( ex: 220V,380V,415V, and etc)
4. Insulation Resistance: More than 2000MΩ
5. CE Certificate
6. Copper /Aluminum winding set
7. Temp. Rise: A, F, H Class
8. High Permeability of silicon steel sheet, low noise & high efficiency, and H class copper wire and insulation materials.

- OPTIONAL ITEMS:
●Auto type
●Isolated type
●Primary & Secondary Voltage
●Terminal blocks type(CE&UL, and etc)
● 3 phase 3 wires type/ 3 phase 4 wires type
●Protection type
●Frequency
●Copper /Aluminum winding set
●Outside Mental Box

Company: CHIN TIRY ENTERPRISE CO., LTD.
