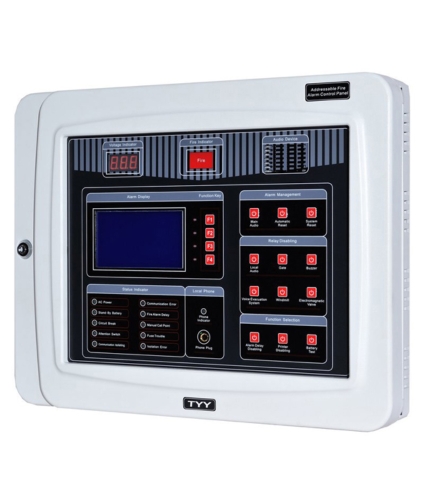

Addressable Fire Alarm Control Panel
- Model:
- YFR-1
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
* English LCD screen (240×128 or 240 characters)
* Two-wire Circuits for supper long transmission distance (up to 2km between the control panel and modules)
* The data memory device can store 2000 historical records permanently. (The device in graphic systems can be expandable up to 20 million records)
* SLCs, IDCs are equipped with insulation false inspection function
* Protection against lightening surge
* A table to review all I/O modules’statuses is available for easier operation
* Addresses and interlocks can be checked in a table in the LCD screen
* Two-stage alarm delay function
* Up to 16 addressable annunciators can be connected
* Equipped with 3 sets of RS-485 communication ports to connect with a central PC’s monitoring and control system
* Housed in a fireproof ABS enclosure
