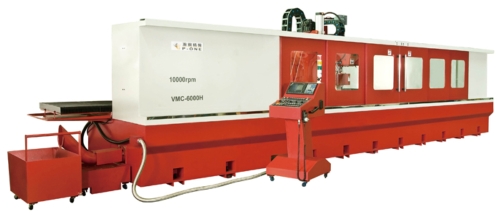

Linear guideway/ Moving-Column Mechanism Vertical Machining Center
Hot- Model:
- VMC-6000A
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
◆Suitable for light machining on strip-shapped, panel and extruded aluminum workpiece.
◆30 m/min Rapid traverse X-axis moves quickly and accurately, which is suitable for aluminum machining industry
to boost production efficiency.
◆VMC-6000A Vertical Machining Center is purpose-built for construction and extruded aluminum
industries, suitable for aluminum machining, milling and drilling. fast and accurate movement
can rapidly increase the machining efficiency.
VMC - 6000A STRUCTURE :
◆X-axis is driven by gear rack.
◆Y / Z axis are driven by ballscrew
◆12000 rpm BT-30 Direct-Drive Spindle
◆Front-mounted type ATC allows the tools to be changed at
the machining position for time-saving.
