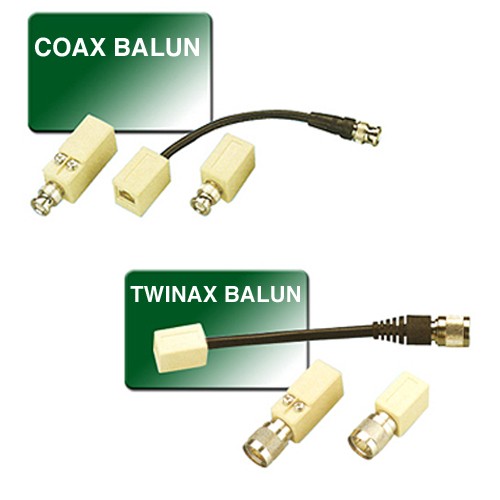

Coax & Twinax Balun
- Model:
- COAX BALUN,TWINAX BALUN
Detail Specifications / Descriptions
COAX BALUN
Compatibility: RG 62A / U coaxial 93 ohm
Application: IBM 327X series, Category A, ITT7411, And LEE DATE 1214, Harris. Memorex, ARCNET.
Data Rate: 0. 5M BPS to 5M BPS
Insertion Loss: ± 0. 5db
Return Loss: -20db min
Effective Transmission: Up to 1000ft or 330M (Option up to 2400 ft or 700M)on 22 / 24 AWG twisted pair.
TWINAX BALUN
Compatibility : Twinax Cabling 100ohm , UL style 2498
Application : IBM 34,36,38 System , 5294 R. W. controller , AS400
Data Rate : 0. 5M BPS to 5M BPS
Insertion Loss : ± 0. 5db
Return Loss : -20db min
Effective Transmission : Up to 1000ft or 330M
(Option up to 2400 ft or 700M)on 22 / 24 AWG twisted pair.
