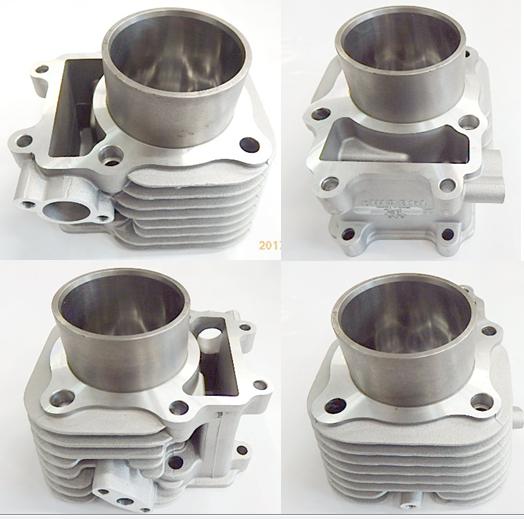

XR125, cylinder
XR125, cylinder

Model:XR125-010 Country of Origin:Taiwan Material:steel alloy

Detail Specifications / Descriptions

( XR125 ビッグボアシリンダー )
X-5TAR cylinder =XR100 cylinder =AN100 cylinder
X-5TAR cylinder =XR125 cylinder =AN125 cylinder=SWING 125 cylinder
XR125 Original Size : 52 x 58.6 ( 124 cc )
include cylinder body,Piston,Piston ring, Pin, gasket and G ring.
SUSUKI XR125 Big bore cylinder
XR125-01057 XR125 Big bore 57 mm cylinder ( 149.5 cc) 14 pin
XR125-01059 XR125 Big bore 59 mm cylinder ( 160.2 cc) 14 pin
XR125-01061 XR125 Big bore 61 mm cylinder ( 171.2 cc) 14 pin
XR125-01062 XR125 Big bore 62 mm cylinder ( 176.9 cc) 14 pin

XR150-01057 XR150 Big bore 57 mm cylinder ( 149.5 cc) 15 pin
XR150-01061 XR150 Big bore 61 mm cylinder ( 171.2 cc) 15 pin
XR150-01062 XR150 Big bore 62 mm cylinder ( 176.9 cc) 15 pin
----------------------------------------------------------------------------------------------------
Especificación detallada

X-5TAR=XR100=AN100
X-5TAR=XR125=AN125 =Swing
XR125 tamaño original : 52 x 58.6 ( 124cc )
incluye el cilindro, pistón, anillo de pistón, Pin, juntas y anillos de forma G
SUSUKI XR125 Big bore cilindro
XR125-01057 XR125 Big bore 57 mm cilindro ( 149.5 cc) 14 pin
XR125-01059 XR125 Big bore 59 mm cilindro ( 160.2 cc) 14 pin
XR125-01061 XR125 Big bore 61 mm cilindro ( 171.2 cc) 14 pin
XR125-01062 XR125 Big bore 62 mm cilindro ( 176.9 cc) 14 pin

XR150-01057 XR150 Big bore 57 mm cilindro ( 149.5 cc) 15 pin
XR150-01061 XR150 Big bore 61 mm cilindro ( 171.2 cc) 15 pin
XR150-01062 XR150 Big bore 62 mm cilindro ( 176.9 cc) 15 pin
