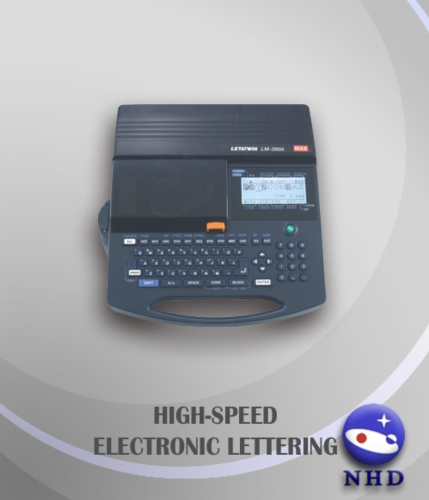

Electronic Lettering Machine

Electronic Lettering Machine

Model:
LM-390A
Country of Origin:
Taiwan

Detail Specifications / Descriptions

LM-390A has an enhanced feeding and half-cutting system that provides you with marking speed at 35mm/second. LM-390A can make 50pcs of 20mm-length tube per minute.

* Maximum 100,000 characters : built-in large memory storage
* Easy access from your PC with USB
LM-390A features USB port for direct connection with
Windows personal computer, as well as USB memory slot
for off-the-line data exchange with PC by "LETATWIN PC EDITOR.
* Large and backlit LCD display
Backlit LCD display makes your operation easy,
even if the workplace is dim.
* Cutting Depth Adjustment
You can adjust the half cutting depth with the "Half cutting depth adjustment lever",when half cutting is too deep.
* The pitch can be set up to maximum 60mm.
Marking on tape: 4 up to 60mm
Marking on tube: 10 up to 60mm
* Marking Materials
2.5mm - 6.5mm dia. tubes are applicable. MAX genuine
tapes of 5mm, 9mm and 12mm width are available
+ Heat-shrinkable tube.

Specifications:
+ Dimensions: 275(W) x 300(D) x 91(H)mm
+ Weight: 2.3kg
+ Printing method: Thermal transfer method(300dpi)
+ Display: LCD dot matrix : 64 x 160Pixel (Backlit)
+ Printing speed: 35mm/s(Standard) / 20mm/s(Low temperature mode)
+ Maximum printing length: Tube : 20m, Tape : 5m
+ Maximum number of characters to input: 5,000 characters per file
+ Character size: 2,3,4,6mm height
+ Usable tube size: Dia. 2.5mm to 6.5mm (PVC, Shrinkable tube)
+ Usable tape size: Width 5,9,12mm (MAX genuine tape)
+ Tube cutting method: Auto half cut, manual full cut
+ Internal memory: 100,000 characters(Maximum 50 files)
+ External memory: USB memory
+ Interface: USB 2.0 full speed
+ Power supply: DC 12V, 3.3A, [Use only specified AC adapter(100V-240V), included in the package.]
+ Operating environment: 10 to 35 degrees celcius
