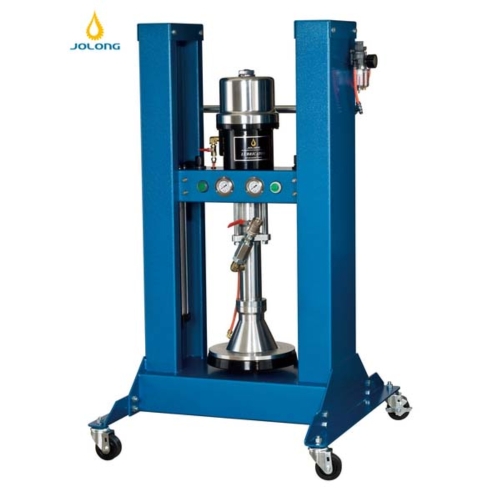

Pressurized Fluid Pump
- Model:
- HV201
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
The Outside Dimension:
Length: 800 mm
Width: 750 mm
Mini Height: 1200 mm
Max Height: 1600 mm
Mode: HV201
Capacity: 20L
Air Input Pressure: 3~7 bar 40~100 psi
Pressure Ratio: 32:1
Grease Output Pressure: 96~224 bar 1280~3200 psi
Deliver Rate: 34 g/cycle
Hose Length: -
N.W.: 110 kgs
G.W.: 142 kgs
CUFT: 20.3'
This pump use for suction No.0 ~ No.3 and high viscosity grease; it had two pneumatic cylinder to push the grease and make the pump shovel the grease easily.
