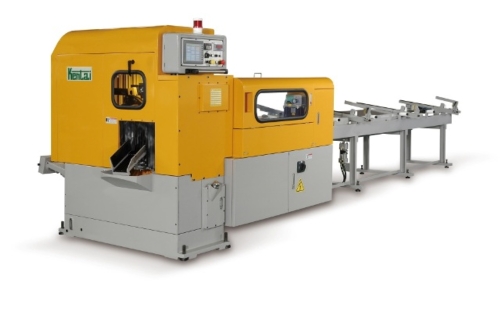

High Speed Circular Sawing Machine

High Speed Circular Sawing Machine


KTC-65E /85E

Country of Origin:


Delivery Lead Time:

45~60 Days

Delivery FOB Port:

Taichung port

Payment Condition:

T/T before shipment or L/C

Detail Specifications / Descriptions
Motion controller system is used of progressive servo-positioned control unit. High capability man-machine inter face design provides 100% signal communication for no losing that have built-in perfect modular set device, error auto detecting function, self diagnosis function.

8.4" color LCD has a high-resolution display screen, you just only be required to touch the characters for display or inputting data by touching on the screen. User-friendliness of man-machine interface displays varied functions settings, error report, operating condition...etc..

It combined with the centalized operating panel that provided with easily realize and handle all characteristics of machine within the shortest training period.

Sawblade feeding was designed with Pivot-Arm type then drove by AC servo motor and Ball-screw.

G.F.C loading system is driven by AC servo motor that cooperates with ball-screw, backlash compensate automatically, and also the reliable precision of repeated positioning is presented.

2mm kerf of TCT carbide tipped sawblade, low losses from cut to cut.

Mis cooling & lubricating system was equipped for cut-off working. It matches up the working environment dry and clean requirement, reduce fluid consumption, increase sawblade life, and dry chips recycled easily without pollution.

Trubleshooting Initial crop and rest piece delivered by independent direction from workpiece.
