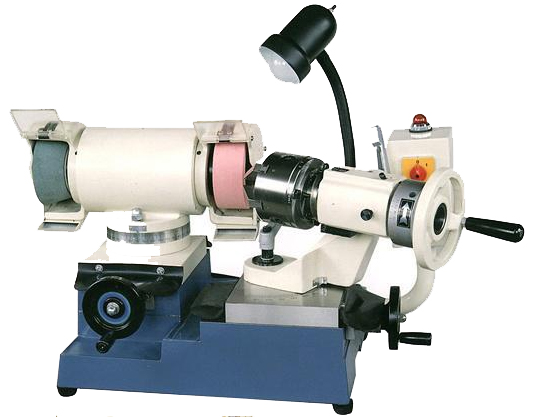

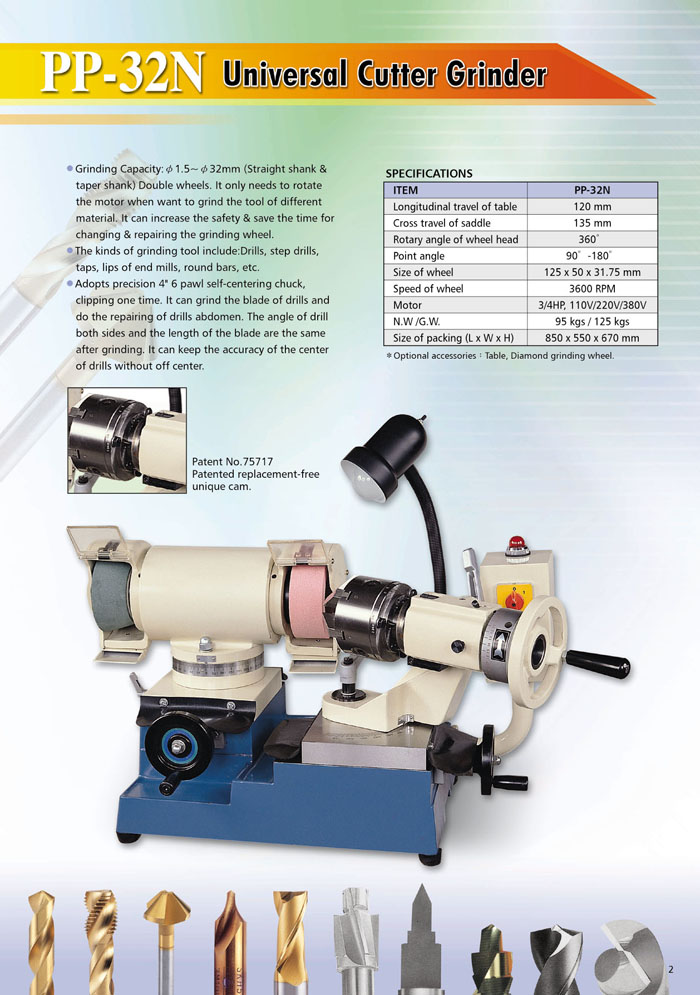

Universal Cutter Grinder

•Grinding Size: Dia.2mm ~ Dia.32mm (straight or taper shank).
•Grinding Capacity:drills, step drills, NC drills, taps, counter sink drills, end mill lips, round bars.

Specifications:
•Longitudinal travel of table: 120mm
•Cross travel of saddle: 135mm
•Rotary angle of wheel head: 360°
•Point angle: 90° ~ 180°
•Size of wheel: 125 x 50 x 31.75mm
•Speed of wheel: 3,600 RPM
•Motor: 3/4 HP, 110V / 220V / 380V
•N.W. / G.W.: 95kgs / 120kgs
•Size of packing (L x W x H): 800 x 550 x 670mm
Features:
•Double wheels. Only to rotate the motor when want to grind the tool with different materials. It can increase the safety & save the time for replacing & repairing the grinding wheel.
•Adopts precise 6 pawl self-centering chuck, clipping one time and can grind th blade of drills and do the repairing of drills abdomen. The angle of drill both sides and the length of blade are same after grinding. It can keep the accuracy of the center without off center.
•Unique cam-replacement-free.
•Simple to set up.
•Easy to operate.
•Grinding fast and high accuracy.
Certificate:
•CE (option)
Order Information:
•Minimum Order: Negotiable
•Branded Product
