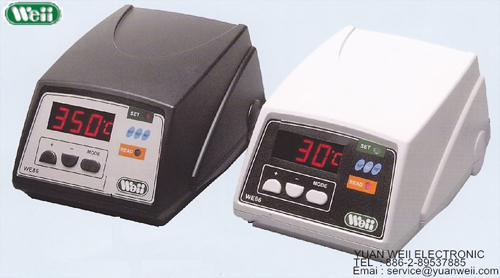

Lead-Free Soldering Station

Lead-Free Soldering Station

Model:
WE-86

Detail Specifications / Descriptions

1.Two voltage options : 110V / 220V, can be used everywhere.
2.Modularized design by Connecting type's heater witch can be replacement easy and quickly by yourslef .Do Not have to sent it back to Factory.
3.Separate tip and heater design to reduce replacement cost
4.Touch preheating and sensor in tip. Soldering wand has intelligent "touch" design for preheating 3~5°C (5.4~9°F) in 3 seconds.
5.Unique design,the sensor is located in the first 10mm of the tip to ensure temperature stability.
6.Three power consumption options (50W/75W/110W) to allow for use with various pad sizes and solder diameters.
7.Digital temperature adjustment makes temperature correction easy
8.Card temperature locking function
9.Auto shut-off function.If the CPU detects no use for 30 minutes, or abnormal condition for 80 seconds, it will shut off automatically to ensure protection of the unit.
10.ESD safe.The machine housing is ESD safe and the tips are certified by SGS for Lead-free soldering with ground resistance to meet the demand of precise high-tech production.

Station
Power Input:110V / 240V(switchable)
Power Consumption : 50W/75W/110W(switchable)
Power Output:24v
Temperature Display:Digital LED display(℃)
Heating model:CPU
Temperature Range:200~460°C
Rising time:20 to 350°C , 28 secs (110W)
Temperature Stability:土 3°C(±5.4°F)
Temperature drop:Under 25°C(77°F)
Dimensions(mm):95(W)x110(H)x178(D)
Weight (w/o cord):3.4kg

Soldering Iron
Max. power consumption: 110W AC24V
Touch sensor preheating:Yes( 3~5°C in 3 sec.)
Heating method:Resistor
Heater and tips:Separate
Tip to Ground Resistance:Under 2Ω
Tip to Ground Potential:Under AC 2mV
Iron(w/o cord):189 mm
Cord(with soldering iron):1.3 m
Weight (with cord):48g
