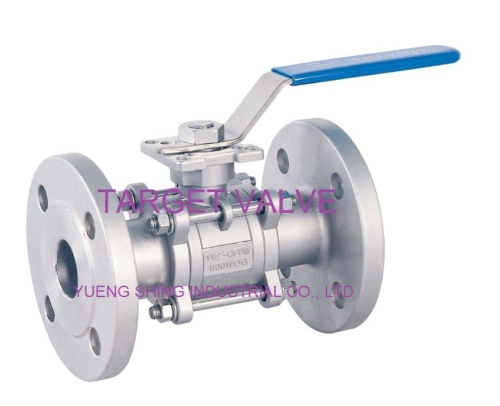

3-PC Flanged Ball Valve (PN16)
Hot- Model:
- H3FPN16
- Country of Origin:
- Taiwan
- Material:
- EN10213-1.4408, EN10213-1.4308, EN10213-1.4409,
Detail Specifications / Descriptions
✽ Full Port
✽ Investment Casting
✽ Material: EN10213-1.4408, EN10213-1.4308, EN10213-1.4409, EN10213-1.0619
✽ Working Pressure: 1/2" ~ 1-1/2" (DN15 ~ DN40) DIN PN40 ;
2" ~ 4" (DN50 ~ DN100) DIN PN16
✽ Flange Dimension : EN1092-1 (RF)
✽ Face to Face Dimension : DIN 3202 / F1 TYPE
✽ Size Ranging: 1/2" ~ 4" (DN15 ~ DN100)
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation / Locking Device
