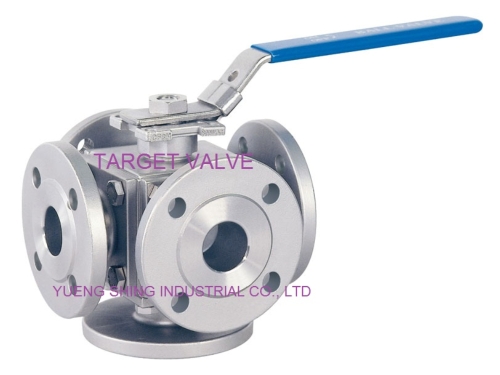

3- / 4- / 5- Way Flanged Ball Valve
3- / 4- / 5- Way Flanged Ball Valve

Model:H6FC150-HL Country of Origin:Taiwan Material:ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A351-CF3M

Detail Specifications / Descriptions

✽ Standard Port
✽ Investment Casting
✽ Material: ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A351-CF3M, ASTM-A216-WCB
✽ Working Pressure: ANSI CLASS 150
✽ Size Ranging: 1/2" ~ 4" (DN15 ~ DN100), 1-1/4" (DN32) is not available
✽ Flange Dimension: ANSI B16.5 (RF)
✽ Face to Face Dimension: F1 (1/2" ~ 2") / F15 (2-1/2" ~ 4")
✽ Ball Options: L Port / T Port / F Port / X Port
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation / Locking Device
✽ Electric Actuator / Spring-Return Actuators / Double-Acting Actuators

3- / 4- / 5- Way Flanged Ball Valve
