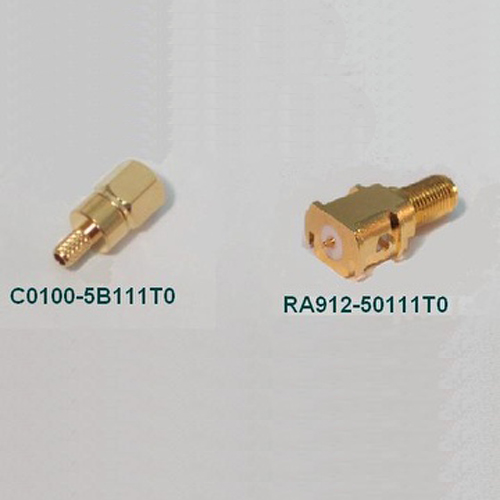

RF Probe Testing
Detail Specifications / Descriptions
Tactile click sensation confirms fully mated condition, assuring complete electrical and mechanical connection.
To meet the frequency requirements of a wide variety of miniature devices, the connectors offer high frequency performance from DC to 6GHz, with a V.S.W.R. of 1.3 to 1.5 max.
this switch features low loss, and switch circuit is designed so that the NC terminal is connected to the C terminal without a plug mated. Mating with a plug opens this connection.
Vertical mounting structure allows the switch to be placed near the antenna of the portable terminal and used to inspect output and switch to an external antenna.
