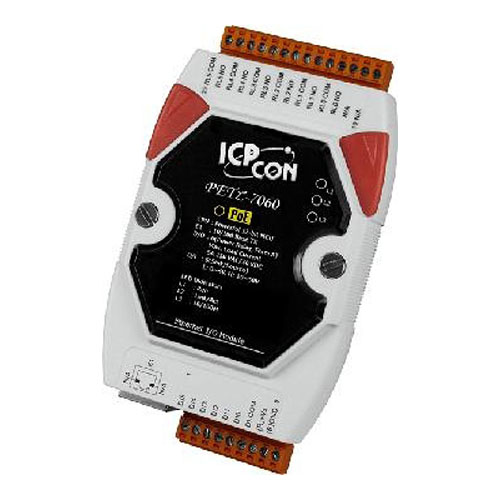

Ethernet module with PoE and Power Relay Output/Digital Input

Ethernet module with PoE and Power Relay Output/Digital Input

Model:
PETL-7060

Detail Specifications / Descriptions

Cost-effective Ethernet I/O modules (Modbus TCP/UDP slave) Contains a 32-bit MCU that efficiently handles network traffic 10/100 Base-TX Ethernet, RJ-45 x1 (Auto-negotiating, Auto MDI/MDIX, LED Indicator) Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols Supports UDP responder for device discovery Supports web configuration and firmware update via Ethernet Various digital input and output types Supports latched DI and 32-bit high-speed counter functions Supports I/O pair-connection through the Ethernet Dual-watchdog with power-on and safe value Easy DIN-Rail mounting RoHS compliant with no Halogen Made from fire retardant materials (UL94-V0 Level) Low power consumption (about 1.7 W only)

Company: ICP DAS CO., LTD.
