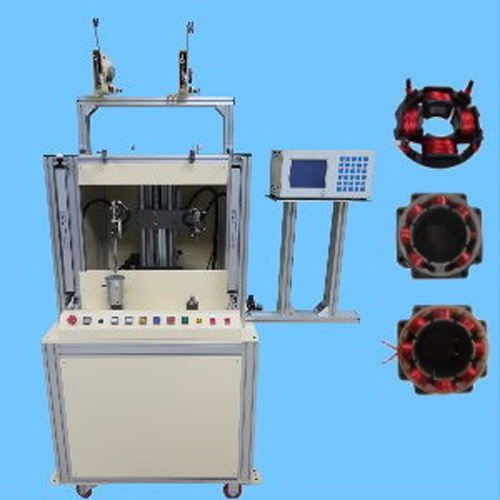

Inner Stator Coil Winding Machine
- Model:
- SW-992
- Country of Origin:
- Taiwan
- Material:
- Metal
- Color:
- Yellow
Detail Specifications / Descriptions
SPECIFICATION:
POWER: AC 220V 50 / 60 HZ
MAIN MOTOR : Four Spindle Servo-motor
CONTROLLER : Servo-controller
WIRE SIZE: Ø1.0 mm Max.
SPINDLES: Two Spindle
AIR SUPPLY： 5kg / cm2
MEMORY： Use USB pen driver
STATOR OUTSIDE DIAMETER : 110mm Max.
STATOR INSIDE DIAMETER : 15mm Min.
THICKNESS： 120 mm
DIMENSION： 950(D)*140(W)*1620(H)mm
