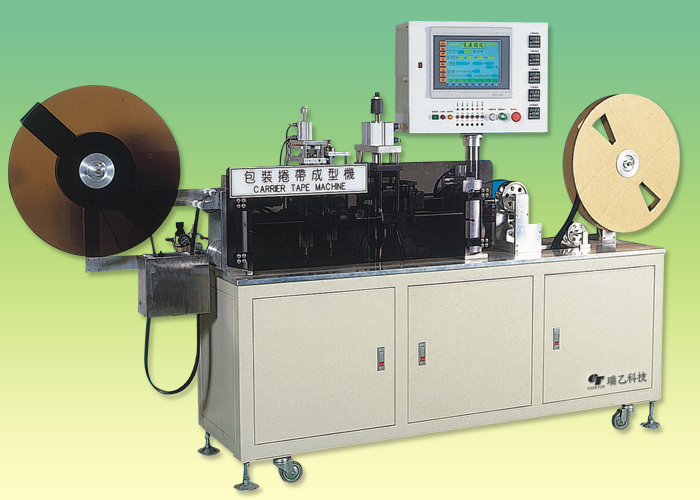

SMD Carrier-Tape Fabrication Machine

Automatic positioning mechanismRapid die changing and productionDetection pin gears
All dies are positioned via the guidepost.
PID pre-heating and heating control.
Precision differential-motion fine-adjustment device for the die sets.
Step-by-step adjustment for carrier-tape guiding, with automatic E1 positioning.
Airtight control of the air box and die is conducted via four-point co-planar automatic positioning.
Compression forming for precision fabrication.
Precision compression forming.
Punching die set is adjustable (K0 and S sizes can be adjusted and corrected), saving die making costs.
In-line precision needle wheel for E1 and P0 value detection, ensuring highly reliable quality control.
Large TFT-LCD monitor with human-machine interface provides test running, parameter (production process) setting, immediate warning and diagnosing.
We also provide software for automatic mold & jig designing, saving customers time and trouble.
