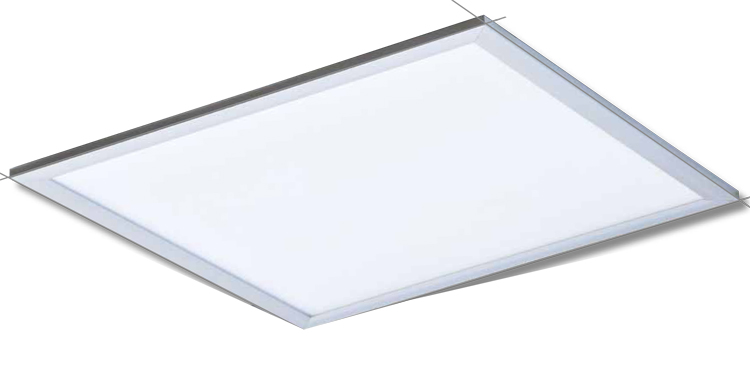

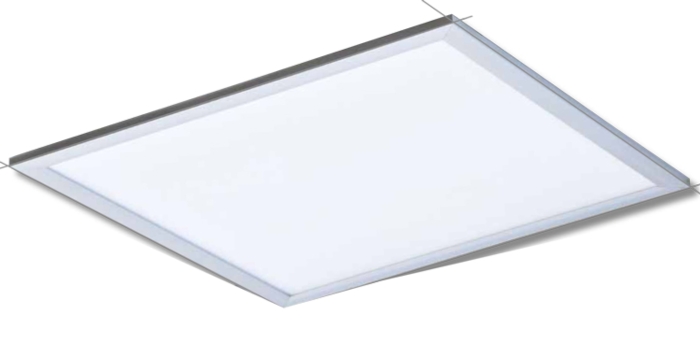

LED T-bar Lighting

LED T-bar Lighting

Model:
LD6175-01
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Models: TPA-6030022-P, TPA-6030022-Y, TPA-6060042-P, TPA-6060042-Y, TPA-6012084-P, TPA-6012084-Y
Illuminant: 42 units of LG#5630 LED chips; 84 units of LG#5630 LED chips; 168 units of LG#5630 LED chips
Input voltage: AC 90~240V; 50~60Hz
Rated power: 22W (max.); 42W (max.); 84W (max.)
Luminous flux: 1600lm; 1500lm; 3200lm; 3000lm; 6400lm; 6000lm
Light CCT: 5700K; 3000K; 5700K; 3000K; 5700K; 3000K
Light CRI: > 80
Light frame: Aluminum in anode-plating
LED MTBF: 35,000hrs
Dimensions: 600x300x12.2mm; 600x600x12.2mm; 600x1200x12.2mm

Features
● Applicable to T-bar lights, recessed lights, art lamps, signboards, quotation tables for commercial setting
● Exclusive light guide technology effects uniform luminance to ensure no dark shadow or radiance
● Constant load current for optimal lumen maintenance and maximized lifecycle
● 90VAC~240V; wide range AC input voltage, suitable for any place
● Light attenuation rate≤7% after 10,000hrs
● No wispy glimmering on power off
● PF: ≥95%

LED T-bar Lighting
Company: LIANG DA LIGHTING ENTERPRISE CORP.

Send inquiry to this company
