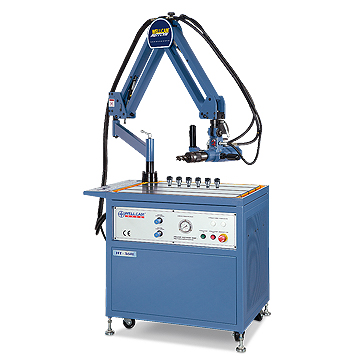

Universal Hydraulic Tapping Machine HT-HL Series
Universal Hydraulic Tapping Machine HT-HL Series Hot

Model:HT-20HL / HT-24HL / HT-36HL Country of Origin:Taiwan

Detail Specifications / Descriptions

Model : HT-20HL
Specifications:
Tapping capacity : M5- M20
Speed RPM:50/500 rpm
Work Range : 500 m/m - 2500 m/m
Tapping fixtures : #2 TC820
Hydraulic Pressure : 120 kg
Motor : 5HP
Power supply : AC 220V / 380V,50/60HZ,3-PHASE
Bench Dimension : 850 m/m x 680 m/m x 870 m/m
Package Size : Table:1140 m/m x 990 m/m x 1190 m/m (Wood Case)
Arm:1590 m/m x 650 m/m x 420 m/m (Wood Case)
Net Weight : Table:310 kg , Arm:66 kg
Gross Weight :Table:380 kg , Arm:135 kg

Model : HT-24HL
Specifications:
Tapping capacity : M5- M24
Speed RPM:50/350 rpm
Work Range : 500 m/m - 2500 m/m
Tapping fixtures : #2 TC820
Hydraulic Pressure : 120 kg
Motor : 5HP
Power supply : AC 220V / 380V,50/60HZ,3-PHASE
Bench Dimension : 850 m/m x 680 m/m x 870 m/m
Package Size : Table:1140 m/m x 990 m/m x 1190 m/m (Wood Case)
Arm:1590 m/m x 650 m/m x 420 m/m (Wood Case)
Net Weight : Table:310 kg , Arm:66 kg
Gross Weight :Table:380 kg , Arm:135 kg

Model : HT-36HL
Specifications:
Tapping capacity : M5- M36
Speed RPM:50/200 rpm
Work Range : 500 m/m - 2500 m/m
Tapping fixtures : #3 TC1433
Hydraulic Pressure : 150 kg
Motor : 5HP
Power supply : AC 220V / 380V,50/60HZ,3-PHASE
Bench Dimension : 850 m/m x 680 m/m x 870 m/m
Package Size : Table:1140 m/m x 990 m/m x 1190 m/m (Wood Case)
Arm:1590 m/m x 650 m/m x 420 m/m (Wood Case)
Net Weight : Table:310 kg , Arm:66 kg
Gross Weight :Table:380 kg , Arm:135 kg

Standard Accessories:
● Hydraulic tapping spindle
● Parallel arm
● Table mounting column
● Radial jib
● Work Table
● Electric - Controlled Device
● Electric Motor, Hydraulic Pump, Hydraulic Box
● Choose any six safety clutch tapping adapters
● Neither hydraulic oil (R32 or R68) nor thread taps are included
