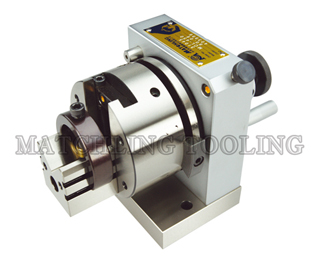

PUNCH FORMER
PUNCH FORMER

Model:MCL-450 Country of Origin:Taiwan

Detail Specifications / Descriptions

● Indexing Div: 24(Every 15°)±10 seconds
● Center height: 80mm
● V-block Clamp range: φ3~φ30mm
● The activities of V-block:Up 24mm/Down 16mm
● Both sides activities of V-block: 12.4mm each
● The dressing range of convex angle: 48mm
● The dressing range of concave angle: 100mm
● Maximum swing diameter: 200mm
● The deflection with round rod: under 2μ
● The deflection with 50mm round rod: under 6μ

PUNCH FORMER
