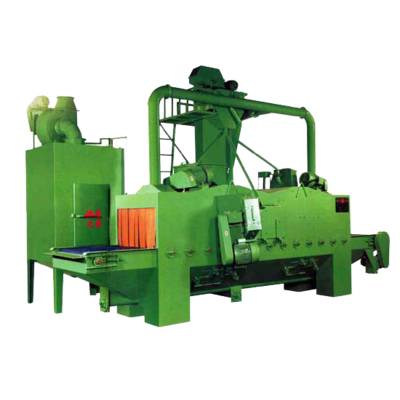

CONVEYING BELT TYPE SHOT BLASTING M/C

CONVEYING BELT TYPE SHOT BLASTING M/C

Model:
CH-107
Country of Origin:
Taiwan

Detail Specifications / Descriptions

This m/c is employed rubber belt to convey the work piece and the rolling rubber belt will convey the work piece pass through the shot-blasting tunnel. Meanwhile, the work piece surface will be shoted steel ball by shot wheelabrators in hi-speed and continuously. after then, then casting sand, scaling & burring etc., which adhesived on the work piece surface will be cleaned, The processed work piece will be shined & burnished and convenient for next step processings.

This m/c is suitable for steel plate, glass. I beam. zinc & aluminium die castings etc., to make single surface shot blasting processings.

Max. work piece length:6,000mm
Eff, handing width:700mm
Max, load height:500mm
No, of wheelabrator:4
Shot blasting power:7-1/2HPx4
Helical collecting power:3HP
Conveying power:1HP
Elevating shot power:2HP
Dust collecting power:5HP
Used floor space(LXW):6x2m
N.W.:3,800kg
We reserve the right to modify the designs & specifications. so that,those are subjected to change, without prior notice.
Machine made available on request.
