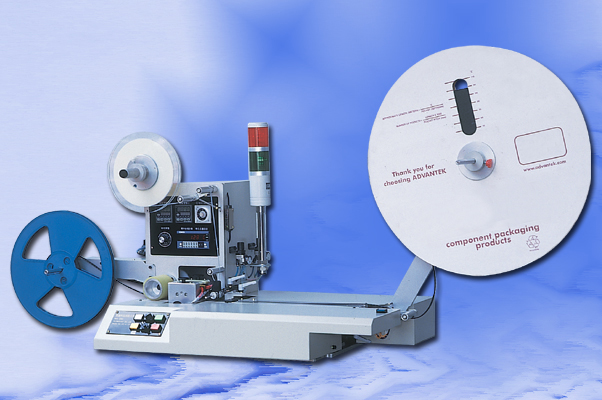

Semiautomatic SMD Taping Machine
- Model:
- WL-K2-N
Detail Specifications / Descriptions
Manual feed (operated by two persons)
Adjustable speeds (UPH) freely adjusted at a range of 5-8k/hr
Width of packing tapes: 8mm-56mm (black or transparent tape)
Rail width adjustment range: 8mm-56mm
Sealing modes: reciprocative sealing, cold sealing, or hot sealing
Two independent sealing shoes, two temperature controllers, one counter, one load sensor, and one protrusion sensor
Optional: viewing system
Pneumatic source: 5!O1kg/cm2
Power: 220V; 50/60 Hz; single phase 1o
Net weight: approximately 38kg
Gross weight: approximately 75kg
Packing measurements: W 650 x L 1,200 x H 920 (mm)
