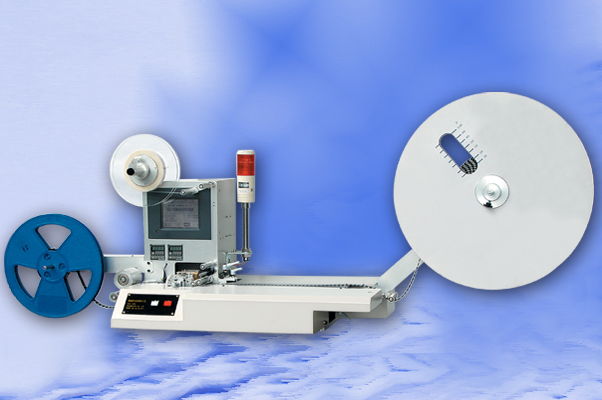

Semiautomatic SMD Taping Machine
Semiautomatic SMD Taping Machine

Model:WL-K3-N

Detail Specifications / Descriptions

Manual feed (operated by two persons)

LCD monitoring (human-machine interface for the setting of modes and values)

Speeds freely adjusted at a range of 5-8k/hr

Width of packing tapes: 8mm-56mm (black or transparent tapes)

Suitable for use in dust-free rooms

No air compression source needed

Rail width adjustable

Sealing modes: reciprocative sealing (sealing height/length/ travel adjustable), cold sealing, or hot sealing

Two independent thermostatic sealing shoes and two temperature controllers

Counting methods: front blank-tape counting, load counting, and rear blank-tape counting(distance between tape holes: 4mm)

One photoelectric load sensor

Pneumatic source: not required

Power: 220V; 50/60Hz; single phase

Machine dimensions:
Net weight: WL-K3-N: approximately 38kg;
WL-K3-L: approximately 45kg
Gross weight:
WL-K3-N: approximately 75kg;
WL-K3-L: approximately 90kg
Packing measurements:
WL-K3-N: W 650 x L 1,200 x H 920 (mm)
WL-K3-L: W 650 x L 1,700 x H 920 (mm)


Manual feed (the model WL-K3-N is operated by two persons, and the model WL-K3-L is operated by four persons)
