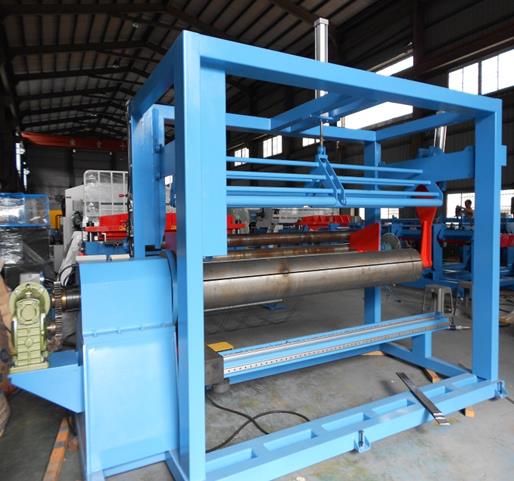

Column type multi-spot mesh welding machine(Coil wire feeding system)

A. Brief introduction of machine structure
1. 150KVA×6 sets transformers
2. Power source: 380V/50Hz
3. Power 3-phases input power source (Alternating current A.C)
4. Power input is 3-phases and is evenly divided for 6 sets of transformer
5. Power (electricity) input for each set of transformer is single phase
B. The structure description: (divided into 5 sections)
1. Sec. 1: 50sets of coil wire feeding coiler
2. Sec. 2: 50sets of wire straightening wheel
3. Sec. 3: Main frame base of the welding machine
4. Sec. 4: Cross wire auto discharge stand
(cross wire shall be preset with length to be cut)
5. Sec. 5: Last machine connects automatic hauling machine

C. The specification of the whole set of welding m/c.
1. Coiler material feed stand: 50sets
2. Total length of the machine: 30M
3. Total width of the machine: 3.3M
4. Total height of the machine: 2.2M
5. Welding position height: 1050mm
6. Total weight: 12T
7. Required square measure space out from workshop: overall production line
Length 30M×Width 12M

D. Welding capacity
1. Set with 25 sets of welding cylinder all in all (Ø90×80×1 sections)
2. 6 sets of transformers will work with 25 pcs of welding cylinders to descend and welding altogether.
3. Widest mesh: 2500mm
4. Wire diameter: Ø3～Ø10mm(平網)﹐Ø4～Ø5mm(捲網)﹐60 iron wires can be welded per minute.
5. Space (pitch) for vertical wires: 50～100～150～200mm
6. Space (pitch) for cross wires: 50～300mm

E. Requested apparatus (peripheral equip) which shall be prepared by buyer itself.
1. Compressor: 50HP
2. Cooling water: 30T
3. Power consumption volume: 500Amp
4. 500Amp No fuse cut out switch
5. Freezing type drying-device
