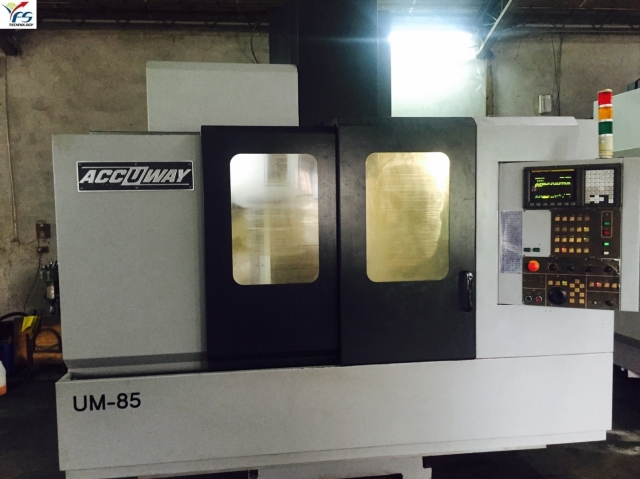

Vertical Machining Center,Used Machine,Accuway,UM-85

Vertical Machining Center,Used Machine,Accuway,UM-85

Model:

UM-85

Country of Origin:

Taiwan


详细规格及用途描述
Age:2004
Controller:FANUC 0i - M
Travel(X/Y/Z): X/Y/Z axis travel:850/550/550mm
Manufacturer:Accuway
Year:2004
Spindle speed:8000rpm
Spindle nose taper:BT40
X/Y/Z axis travel:850/550/550mm
Tool magazine capacity:24
Controller:FANUC 0i - M
Table dimension:1100 × 600mm
Max. weight on table:1000kgs
Spindle motor power (Cont. / 30 min):7.5 / 11
Machine dimension (L × W × H):2.7 × 2.2 × 3.0m
Machine weight:7000kg
The machine specification above is for reference only. The real object should be considered as final.



Company:

YEONG FENG CHERNG CO., LTD.

Contact Person:

Mr. Chang

Address:

No. 11-1 Houliao Rd., Waipu Dist. Taichung City 438, Taiwan

Telephone:

04-26836718

Fax:

04-26833011

E-Mail:

URL:

www.yfs-cnc.com.tw
www.cens.com/yu-shang

Send inquiry to this company
