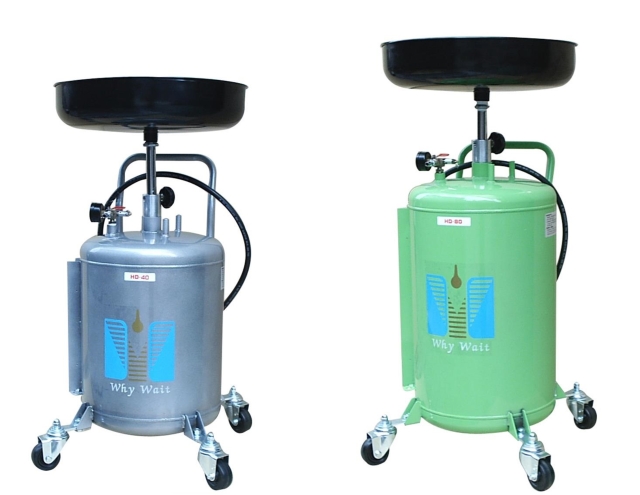

Oil Drainer
- Model:
- HD-40/HD-80
Detail Specifications / Descriptions
Features:
* The height of the funnel can be adjusted to fit most car lifts.
* A Ø520mm large metal funnel prevents oil from spilling.
* It is easy to operate and keep the work space clean.
5.Patent automatic retraction design,and it doesn't require manual action to lift or hold down the funnel to accept or drain oil.
6.Use the air pressure to drain oil and can store pressure to drain oil at any place.
7.An N-shape pipe (optional) can be installed so as to allow the funnel turn 360° to drain oil.
8.Patent No.: 81598
Capacity: 40L/80L
Used pressure: 5_7kg/cm2
Machine Size: 520※520※950~1280(40L)/ 520※520※1090~1570(80L)
Discharge: Air pressure
N.W.: 25 KGS(40L)/27 KGS(80L)
G.W.: 27 KGS(40L)/29 KGS(80L)
