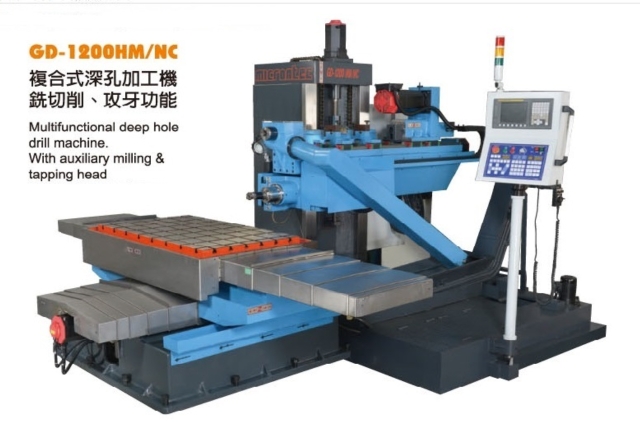

Molds type Deep Hole Drilling Machine in drilling
Molds type Deep Hole Drilling Machine in drilling

Model:GD-1200HMNC Country of Origin:Taiwan

Detail Specifications / Descriptions

1.)Hole Diameter:3-32mm, 2.)Max. drilling Depth: 1000mm, 3.)Working table: 800*1400mm, 4.)Max. loading capacity: 5000kgs,5.)Travel: X axis: 1200mm, Y axis:800mm, Z axis: 1200mm, A axis: 150mm, 6.)Controller: Fanuc/ Mitsubishi or Others.
Features:1.) Drilling, milling and tapping in 4 axis servo motor with C3 grade ball screw transmission system. 2.)Optioned head tilting drilling function with 360D, 1 index rotary working table.
