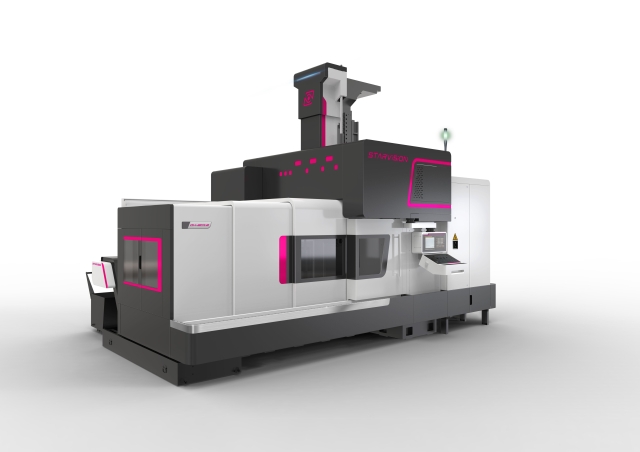

Compact Type Double Column Machining Center
Compact Type Double Column Machining Center

Model:DH Series Country of Origin:Taiwan

Detail Specifications / Descriptions

Table size [mm] 1,300 - 2,000 x 1,100
Travel – Longitudinal – X axis [mm] 1,300 - 2,000
Travel – Cross – Y axis [mm] 1,200
Travel – Vertical – Z axis [mm] 600 / *800
Rapid feed rate (X - Y - Z) [m/min] 30 - 30 - 30
Spindle motor (30 min. rating) [kW] 22 / *26
Spindle speed (direct drive) [rpm] 10,000
Spindle taper [ - ] BT-50 / ISO-50 / CAT-50
Tool storage capacity [ - ] 12 / *24 / *32
* Option
