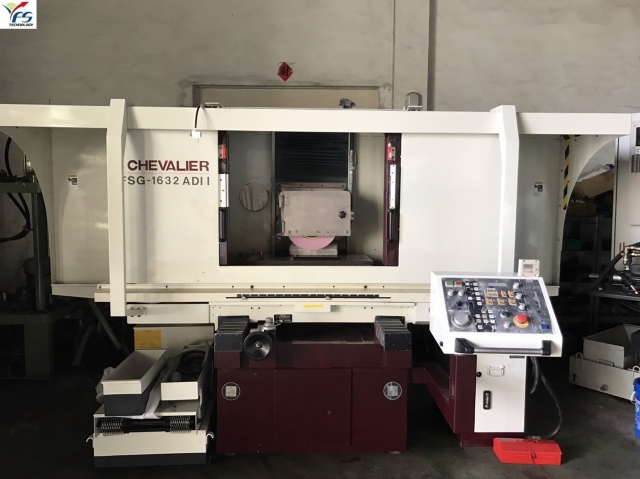

CHEVALIER Used Grinder

CHEVALIER Used Grinder

Model:

FSG-1632ADII

Detail Specifications / Descriptions
Controller:
Travel(X/Y/Z):
Others: Manufacturer:CHEVALIER
Model:FSG-1632ADII
Table Size:15 3/4" x 31 1/2"
Max Grinding Length Longitudinal:32"(810mm)
Max Grinding Width Crosswise:16"(405mm)
Max Distance from Table Surface to Spindle Centerline:24"
Maximum Travel, Manual:35 3/8"(900mm)
Table Speed, infinitely variable:5~25 m/min.
Rapid travel, approx.:3.5m/min.
Automatic Transverse Increment:2.9m/min.
Maximum Automatic Travel:16" (405mm)
Maximum Manual Travel:18 "(460mm)
Wheelhead Vertical Infeed: Automatic Infeed:0.00005"~0.002
Rapid Travel, approx:25 ipm
Grinding Spindle Drive Speed:60Hz1750rpm; 50Hz1450rpm
Power rating:5HP/4P
Machine Size:132"x68"x76"/82" (3500x1730x1930mm/2083mm)
Machine Weight:6394 lbs(2900kg)
The Machine Specification above is for reference only. The real object should be considered as final.
