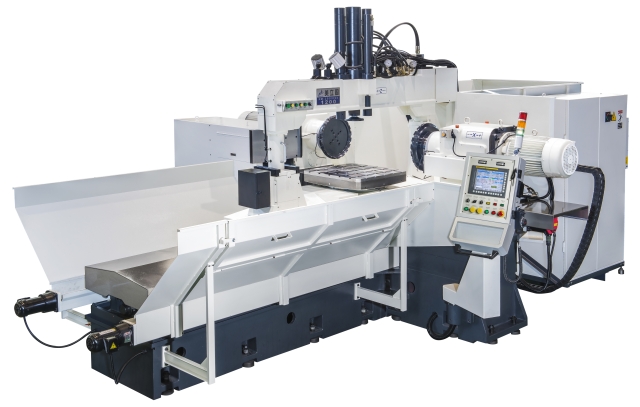

NC DOUBLE SIDED MILLING MACHINE

NC DOUBLE SIDED MILLING MACHINE

Model:

HM-2500DS6-1200

Country of Origin:

Taiwan

Delivery FOB Port:

F.O.B. Taiwan

Payment Condition:

T/T , L/C


详细规格及用途描述
■One piece rigid construction machine base.
■Heavy duty cutting spindle (Equivalent NT50) Y and Z-axis.
■X-axis precision scraped V and flat guide way for heavy duty cutting.
■All guides are TURCITE-B coated and precision scraped.
■X-axis ball screw half is soaked in lubrication oil, no need for lubrication.
■Powerful vertical clamp hydraulic cylinder.
■HM-1500DS-500 with one main cylinder, the other models with one main cylinder and two auxiliary hydraulic cylinders.
■4 axes control, X (longitude) Y,Z (L and R cutting spindle) and W (precision index table).
■HMI user friendly touch screen with dialogic data input, self alarm diagnosis and alarm message display.
■Electric Cabinet with air cooling system.
■Auto index table with servo control W axis.
■90° align stopper for easy setup of the workpiece.
■Auto detecting device for measuring the workpiece before machining.
■Complete set of hydraulic system.
■Pnematic system for air blow and detecting device.
■Screw type chip conveyor : 2 sets.
