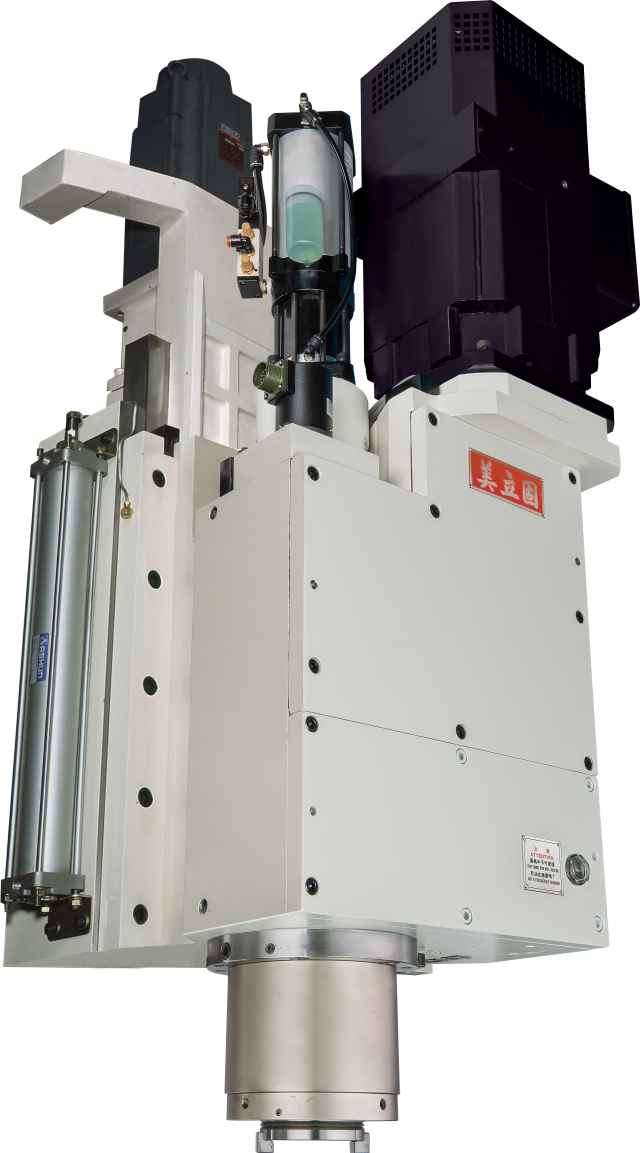

NC MILLING HEAD UNIT
NC MILLING HEAD UNIT Hot

Model:ML02-3000 Country of Origin:Taiwan

Detail Specifications / Descriptions

■The NC milling head provide right hand side milling and left hand side milling for select, it allows for vertical, horizontal and reversed horizontal milling. Also it available to mount with the angular head.
■Easy to operate and high rigidity. The NC milling head is applicable for Plano miller or special purpose machine and it is suitable for heavy duty cutting, boring, drilling and tapping operations.
■The lubrication system are forcedly lubricated by using automatic pump or automatic lubricator.
■Gears and shafts are manufactured from Chrome-molybdenum alloy steel (SCM415), quenched and precision ground to JIS Class 1. Rugged material is not easy to crack even by impact.
■The casting parts are manufactured from Meehanite cast iron and stress relieved to ensure the accuracy and stability of the milling head.
■The slideway surfaces are hardened and precision ground, allowing accurate movement and maximum wear-resistance.
■Air curtain device may prevent chips and dusts from entering. Circulated oil cooling system reduces the temperature of the milling head.
■Two-step hydraulic control system.
■The gearbox structure is fitted with high speed bearing and fixed well at both sides to avoid vibration during heavy duty cutting.
■The transmission shaft is designed with straight type gear and separated design for easy maintenance.
■Multiple seal design optimized bearing construction and use the needle bearing to provide better cutting capacity.
■Precision assembly skill with guaranteed accuracy.

NC MILLING HEAD UNIT
