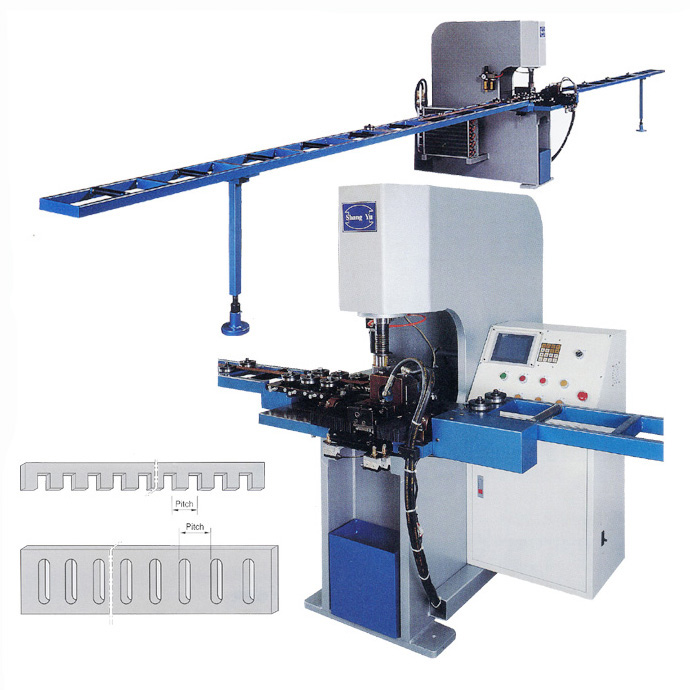

Consecutive Hydraulic Punch Press

Consecutive Hydraulic Punch Press

Model:
A15-600

Detail Specifications / Descriptions

Features:
.Programmable digit control, easy to operate.
.Servo motor controlled stroke, with precise stroke pitch, features rapid performance.
.Floating worktable can be custom-made according to required work piece lengths.
.Performs quick mold changing and punching, saving time and labor.
.Works with various shapes of molds. Applicable round molds are 2.6 mm~31 mm in diameters.

Model: A15-600
Work Table (L x W): 600 x 400 mm
Work Table (L x W): 200 mm
Motor: 3HP/6units
Max. Punching Aperture: ø31 mm
Min. Punching Aperture: ø2.6 mm
Max. Punching Aperture: 6 mm
Max. Force: 15 tons
Min. Punching Time (L: 10 mm): 120 times / minute
Package Measurement (L x W x H): 12000 x 1000 x 1650 mm
Total Machine Weight: 1500kgs
