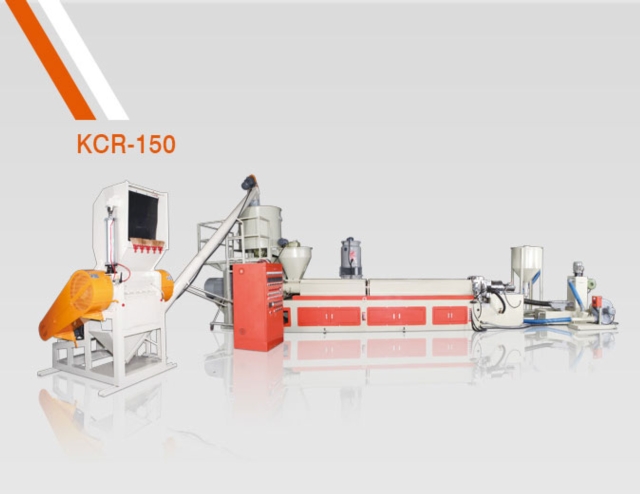

FILM/BAGS WASTE PLASTIC RECYCLING MACHINE
- Model:
- KCR-150
Detail Specifications / Descriptions
| MODEL | KCR-150 |
|---|---|
| KCR-150 | |
| SUITABLE MATERIAL | HDPE/LDPE/LLDPE |
| HDPE/LDPE/LLDPE | |
| OUTPUT | 300-400 kgs / hr |
| 300-400 kgs / hr | |
| CRUSHER & SCREW CONVER SYSTEM | |
| CRUSHER | 50 HP |
| 50 HP | |
| SCREW CONVER | 2 HP |
| 2 HP | |
| INTO SIZE | 5" |
| 5" | |
| EXTRUDER | |
| WASTE COLLECTING TANK | 1400 L |
| 1400 L | |
| COLLECTING TANK MOTOR | 2 HP + Inverter |
| 2 HP + Inverter | |
| SPIRAL TYPE FEEDING DEVICE FOR HOPE | 2 HP + Inverter |
| 2 HP + Inverter | |
| GEAR BOX | Direct Connect Type |
| Direct Connect Type | |
| SCREW DIAMETER | Ø 150 mm Single Dega Sification |
| Ø 150 mm Single Dega Sification | |
| SCREW L/D RATIO | 30:1 |
| 30:1 | |
| HEATING CAPACITY | 141 kw |
| 141 kw | |
| AUTO THERMO CONTROL | 8 zone |
| 8 zone | |
| DRIVING MOTOR | AC 125 hp + Inverter |
| AC 125 hp + Inverter | |
| DIE FACE CUTTING & SCREEN CHANGER | |
| DIE TYPE | |
| HEATER | 19.2 kw |
| 19.2 kw | |
| AUTO THERMO CONTROL | 2 zone |
| 2 zone | |
| PELLETIZING | 2 PCS(SPRING) |
| 2 PCS(SPRING) | |
| PELLETIZING MOTOR | 1 HP + Inverter |
| 1 HP + Inverter | |
| SCREEN CHANGER | Hydraulic Cylinder |
| Hydraulic Cylinder | |
| COOLING SYSTEM | |
| TYPE | Water Cooling |
| Water Cooling | |
| COOLING WATER DRUM | 1 Set |
| 1 Set | |
| WATER PUMP | 2 HP |
| 2 HP | |
| COOLING WATER TANK | 1 Set |
| 1 Set | |
| DEHYDRATOR & CENTRIFUGAL SEPARATOR SYSTEM | |
| DEHYDRATOR | 1 Set |
| 1 Set | |
| DEHYDRATOR MOTOR | 5 HP |
| 5 HP | |
| COLLECTING SYSTEM | |
| AIR BLOWER | 5 HP |
| 5 HP | |
| COLLECTING TANK | 600 L |
| 600 L | |
| PELLET CUTTING MACHINE | |
| MOTOR | |
| CUTTER MOTOR | |
