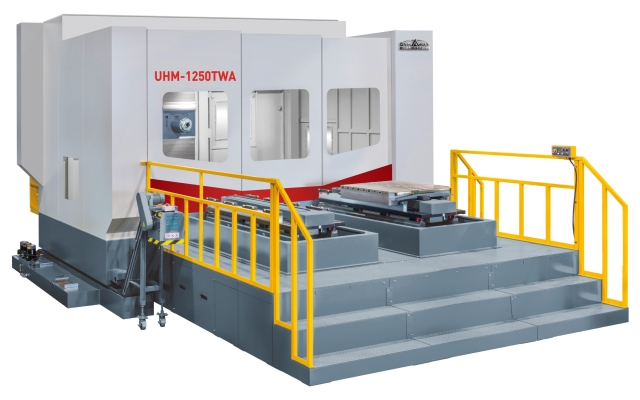

Horizontal Machining Center

Horizontal Machining Center

Hot
Model:
UHM-1250TWA
Country of Origin:
Taiwan
Color:
Customized Color Available

Detail Specifications / Descriptions

MODEL: UHM-1250TWA
Table Size: 1250 x 1250APC(2 working tables)
T-slot Size: 22 x 7mm
Maximum Load: 5000kg
Indexing Degree: 1º(0.001º)
X-Axis Travel: 2000mm
Y-Axis Travel: 1600mm
Z-Axis Travel: 1200mm(1400mm)
Spindle Speed: 6000RPM
Spindle Taper: BT-50
Spindle Center to Table: 0~1600mm
Spindle Nose to Table Center: 50~1650mm(1850mm)
Height From Ground to Table Surface: 1350mm
Rapid Feed Rate on X/Y/Z/W: 15/15/15/10(M/Min.)
X/Y/Z Minimum Setting: 0.001mm
Cutting Feed Rate: 1-5000mm/min.
Spindle Motor(cont./30 min.): 15/18.5kw(22/26kw)
X/Y/Z/W/B-Axis Lubricator Motor: 4/7/4/4/4kw
Hydraulic Pump: 2.25kw
Coolant Pump: 1.17kw
Chip Conveyor: 0.2kw
Oil Cooler Pump: 0.75kw
No. of Tools: 40(60)PCS.
Tool Selection: random(absolute)
Tool Change Time(approx.): 15 sec./Tool to Tool
Max. Tool(dia./length): Ø125(Ø250)/400mm
Max. Tool Weight: 25kg
Power Required: 45KVA
Compressed Air: 6kg/cm2
