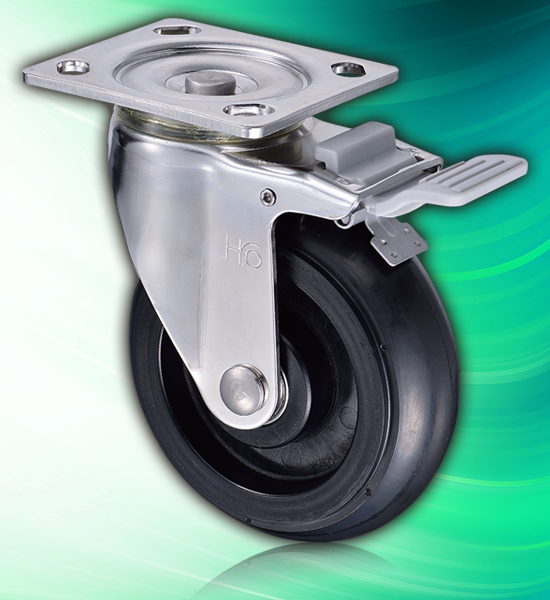

6" Industrial Wheel Shock Absorbing Stainless Steel Caster

Hot
Model:
A625BF-HG-#304
Country of Origin:
Taiwan
Material:
Elastic Rubber

Detail Specifications / Descriptions

Type: Front Total Lock Caster
Wheel Diameter x Width: 6x2 inch (150x50 mm)
Height: 191 mm
Load Capacity: 300 kg
Bolt Hole Center: 70x85 mm
Plate Size: 105x115 mm
Bolt Hole: Φ12x20
Bearing: #6202 Double Ball Bearings
Fork Structure: #304 Stainless Steel
Eccentricity: 44 mm
Wheel Core: Nylon Core
Weight: 2.292 kg

1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Nylon Core to increase the load capacity and the stability when moving.
3. Bearing: Stainless steel #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
4. Fork: Front Total Lock with top plate. Use #304 stainless steels and integrally formed.
