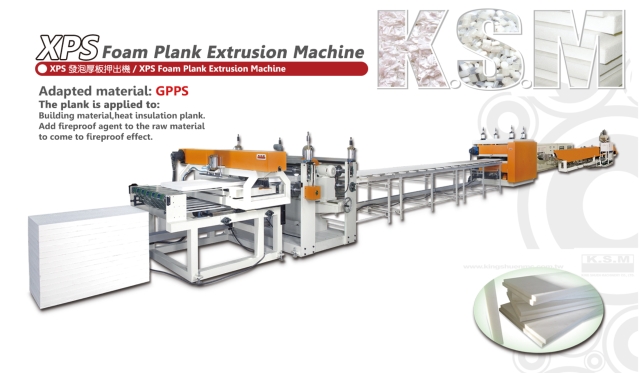

XPS Foam Plank Extrusion Machine
XPS Foam Plank Extrusion Machine Hot

Country of Origin:Taiwan

Detail Specifications / Descriptions

Adapted material:GPPS.

The plastic sheet is applied to following products:
Building material, heat insulation plank. And fireproof agent to the raw material to come to fireproof effect.

The feature:
1.Foam agent: Butane.
2.Imported gear box from Europe.
3.The material of barrel and screw is SACM645, the hardness is HRC63~65.
4.Driving with SSR or SCR heating, PID temperature control.
5.Adopt speedy screen exchange filter, oil pressure electromagnetic valve control to avoid the pause during operation.
6.Foam agent injection unit: 2 sets of LEWA metering pumps(more than 2 sets will borne by buyer) added extra gas detector in case the leakage of gas.
7.T-die made by qualified supplier in Taiwan. Equip static mixer to assure the flow of plastic material inside of T-die more even and less diversity in thickness.
8.Teflon slide surface setting platform makes plank moving forward smoother after extrusion.
9.Cooling roller frame is adjustable according to factory space or equip cooling fan.
10.Provide dust collector to reduce the air pollution.
11.The move of crosscut unit is synchronization with production line. Move and cutting in the twinkling to improve the accuracy.
12.The design of driving motor adopt vector converting control in order to reach “Energy saving and carbon reduction”.
13.All components are imported from Italy、Germany 、UAS、Japan or made in Taiwan.
14.Clients could choose the manual control or human-machine interface of control panel according to the demand.
15.We could also provide chamfering machine, grooving machine or packing machine according to client’s production project.
16.We could provide turn-key project including forming machine and recycling pellet machine.
