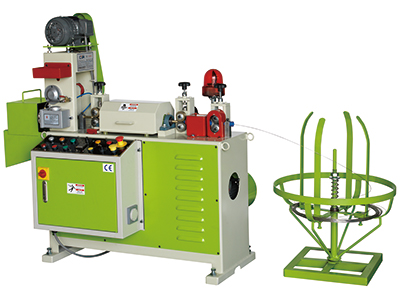

CYA-100A

Two-way straight line model (preventing line from being rotated). Suitably used for NC spring machine, press connection. (Patented model)

1. With strict quality control, best performance, durables and little breakdown rate.
2. Sound is slight during running, no vibration and to install underground screws not required.
3. Trough special design which is studied and improved for years, the easy operation goes with automatic control in high efficiency.
4. Directly deciding its size as well as length, the cutting is accurate and flat.
5. Straightness and cutting face is to meet international standard.
6. Suitable for cutting the short shaft, for example: for cutting the spindle.


　
　　 Type
　　 CYA-100A
　
　
　　 DIAMETER OF STRINGS
　　 0.5~1.2(m/m)
　

　　 LENGTH OF STRINGS
　　 10~300(m/m)
　

　　 CUTTING
　　 1/4HP
　

　　 STRAIGHTENING
　　 1/2HP
　

　　 FEEDING
　　 1/4HP
　

　　 WEIGHT
　　 N.W180kg. G.W280kg
　

　　 PACKING DIMENSIONS
　　 150(L)×60(W)×75(H)cm
