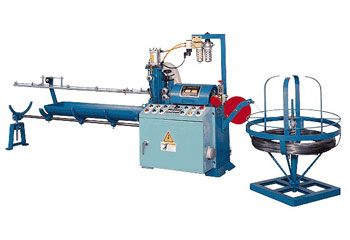

Full B Type AutomaticWire Straightening Cutting Machines
Full B Type AutomaticWire Straightening Cutting Machines

Model:CYA-101B Country of Origin:Taiwan

Detail Specifications / Descriptions

Cutting length can be custom-made for min. length S3m/m, max. length within 12M. (Super-length is controlled by electric preset for high performance and easy operation.)

Had obtained the newest type 4 patents and creation registered (No counterfeit is allowed, otherwise a lawsuit punishment will be raised.)


1. Cutting part adopts hydraulic cutting device.
2. Cutting body adopts movable slide seat equipment (Linear type slide rail)
3. Feed part adopts DISCO adjustable motor speed is for free adjustment.
4. High stability, suitable for forging, auto lathe, rod material, screw, spindle, steel, brass, iron, and metals etc. stainless steel wire material.
5. Flat cutting, low error rate.
6. Wire appearance is not damaged to keep a beautiful outlook.
7. Adopts CE standard electrical engineering control system, high safety, low malfunction rate, good function, and productivity is increased.
8. Low consumption of roller, and not wearing on straightener.



   Type
   CYA-101B


   DIAMETER OF STRINGS
   1~1.8(m/m)


   LENGTH OF STRINGS
   300~3000(m/m)


   MORTOR RATING
   1/4HP. 1HP


   WEIGHT
   N.W150kg. G.W200kg


   PACKING DIMENSIONS
   140(L)×60(W)×75(H)cm
