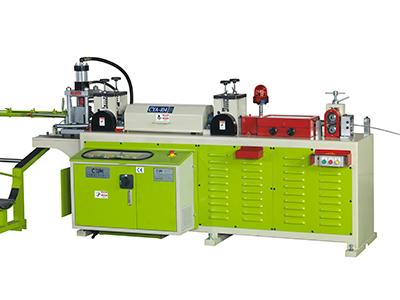

B Type Automatic Wire Straightener Cutter
B Type Automatic Wire Straightener Cutter

Model:CYA-105B Country of Origin:Taiwan

Detail Specifications / Descriptions

Cutting length can be custom-made for min. length S30m/m, max. length within 12M. (Super-length is controlled by electric preset for high performance and easy operation.)
New patented hydraulic cutting and feeding, and the speed can be adjusted.

Had obtained the newest type 4 patents and creation registered (No counterfeit is allowed, otherwise a lawsuit punishment will be raised.)


1. Cutting part adopts hydraulic cutting device.
2. Cutting body adopts movable slide seat equipment (Linear type slide rail)
3. Feed part adopts DISCO adjustable motor speed is for free adjustment.
4. High stability, suitable for forging, auto lathe, rod material, screw, spindle, steel, brass, iron, and metals etc. stainless steel wire material.
5. Flat cutting, low error rate.
6. Wire appearance is not damaged to keep a beautiful outlook.
7. Adopts CE standard electrical engineering control system, high safety, low malfunction rate, good function, and productivity is increased.
8. Low consumption of roller, and not wearing on straightener.



   Type
   CYA-105B


   DIAMETER OF STRINGS
   6~10(m/m)


   LENGTH OF STRINGS
   50~3000(m/m)


   CUTTING
   3HP


   STRAIGHTENING
   10HP


FEEDING
   2HP 10~60M/Min


WEIGHT
   N.W1450kg. G.W1600kg


   PACKING DIMENSIONS
   230(L)×140(W)×152(H)cm
