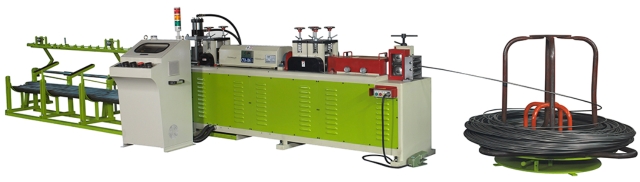

B Type Full Automatic Wire Straightening Cutter
- Model:
- CYA-106B
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Cutting length can be custom-made for min. length S30m/m, max. length within 12M. (Super-length is controlled by electric preset for high performance and easy operation.)
New patented hydraulic cutting and feeding, and the speed can be adjusted.
Had obtained the newest type 4 patents and creation registered (No counterfeit is allowed, otherwise a lawsuit punishment will be raised.)
1. Cutting part adopts hydraulic cutting device.
2. Cutting body adopts movable slide seat equipment (Linear type slide rail)
3. Feed part adopts DISCO adjustable motor speed is for free adjustment.
4. High stability, suitable for forging, auto lathe, rod material, screw, spindle, steel, brass, iron, and metals etc. stainless steel wire material.
5. Flat cutting, low error rate.
6. Wire appearance is not damaged to keep a beautiful outlook.
7. Adopts CE standard electrical engineering control system, high safety, low malfunction rate, good function, and productivity is increased.
8. Low consumption of roller, and not wearing on straightener.
Type
CYA-106B
DIAMETER OF STRINGS
8~12(m/m)
LENGTH OF STRINGS
75~3000(m/m)
CUTTING
5HP (HYD.MOTOR)
STRAIGHTENING
15HP
FEEDING
3HP 12~72M/Min
WEIGHT
N.W2100kg. G.W2300kg
PACKING DIMENSIONS
280(L)×160(W)×160(H)cm
