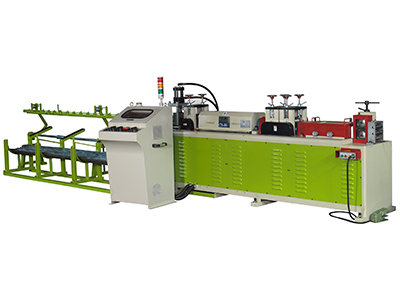

B Type Automatic Wire Straightening Cutteing Machine

Cutting length can be custom-made for min. length S30m/m, max. length within 12M. (Super-length is controlled by electric preset for high performance and easy operation.)
New patented hydraulic cutting and feeding, and the speed can be adjusted.

Had obtained the newest type 4 patents and creation registered (No counterfeit is allowed, otherwise a lawsuit punishment will be raised.)


1. Cutting part adopts hydraulic cutting device.
2. Cutting body adopts movable slide seat equipment (Linear type slide rail)
3. Feed part adopts DISCO adjustable motor speed is for free adjustment.
4. High stability, suitable for forging, auto lathe, rod material, screw, spindle, steel, brass, iron, and metals etc. stainless steel wire material.
5. Flat cutting, low error rate.
6. Wire appearance is not damaged to keep a beautiful outlook.
7. Adopts CE standard electrical engineering control system, high safety, low malfunction rate, good function, and productivity is increased.
8. Low consumption of roller, and not wearing on straightener.


　
　　 Type
　　 CYA-107B
　
　
　　 DIAMETER OF STRINGS
　　 10~14(m/m)
　

　　 LENGTH OF STRINGS
　　 80~3000(m/m)
　

　　 CUTTING
　　 7 1/2HP
　

　　 STRAIGHTENING
　　 30HP
　

FEEDING
　　 5HP 12~72M/Min
　

WEIGHT
　　 N.W3000kg. G.W3250kg
　

　　 PACKING DIMENSIONS
　　 320(L)×200(W)×170(H)cm
