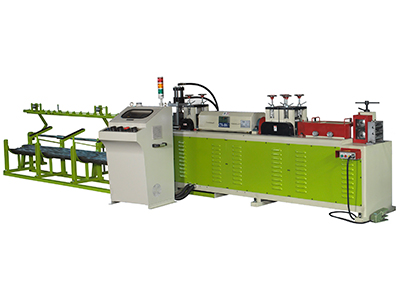

B Type Wire Straightening Machine
B Type Wire Straightening Machine

Model:CYA-108B Country of Origin:Taiwan

Detail Specifications / Descriptions

Cutting length can be custom-made for min. length S30m/m, max. length within 12M. (Super-length is controlled by electric preset for high performance and easy operation.)
New patented hydraulic cutting and feeding, and the speed can be adjusted.

Had obtained the newest type 4 patents and creation registered (No counterfeit is allowed, otherwise a lawsuit punishment will be raised.)

  • 1. Cutting part adopts hydraulic cutting device.
  • 2. Cutting body adopts movable slide seat equipment (Linear type slide rail)
  • 3. Feed part adopts DISCO adjustable motor speed is for free adjustment.
  • 4. High stability, suitable for forging, auto lathe, rod material, screw, spindle, steel, brass, iron, and metals etc. stainless steel wire material.
  • 5. Flat cutting, low error rate.
  • 6. Wire appearance is not damaged to keep a beautiful outlook.
  • 7. Adopts CE standard electrical engineering control system, high safety, low malfunction rate, good function, and productivity is increased.
  • 8. Low consumption of roller, and not wearing on straightener.

TypeCYA-108B
DIAMETER OF STRINGS14~18(m/m)
LENGTH OF STRINGS90~3000(m/m)
CUTTING10HP
STRAIGHTENING50HP
FEEDING7 1/2HP 12~72M/Min
WEIGHTN.W4000kg. G.W4300kg
PACKING DIMENSIONS400(L)×210(W)×175(H)cm
