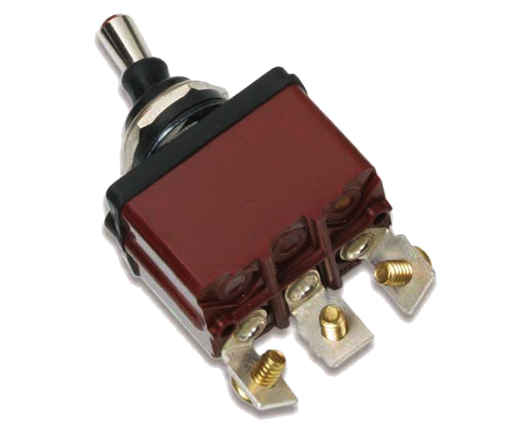

Toggle Switch
- Model:
- FE-A1775
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Single Pole Double Throw Switch
3 Position On-Off-On
3 Screw terminals
Silver plated Bronze Contacts
Max. current/ Voltage rating with resistive load : 12Amps @ 28Volts DC – 6Amps @ 250Volts AC
Initial contact resistance : 10mΩ Max. 1Amps @ 2Volts DC
Insulation resistance : 1.000MΩ min. 500Volts DC
Waterproof
