ALUMINUM
ALUMINUM

Detail Specifications / Descriptions

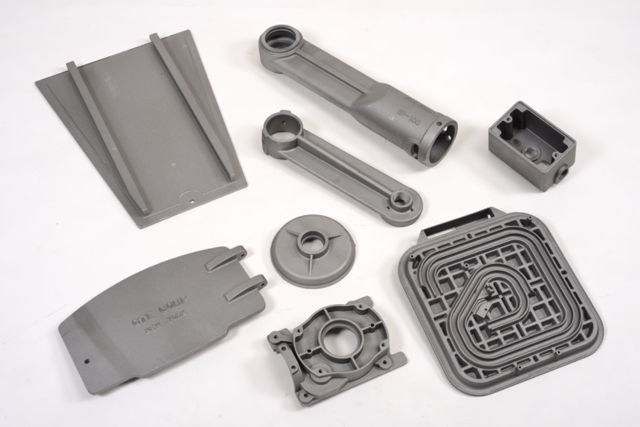

LIAN CHANG provides all kinds of die casting parts, we are specialized in brass alloy, aluminum alloy and zinc alloy…etc. We can also provide customized design and manufacturing, please contact us if you need professional die casting.


The aluminum alloy materials are AA#360, A360,380, A380, and 384 or JIS ADC3, ADC6, ADC10 and ADC12.
Some European Standard die cast aluminum alloys are also available.


Die-casting aluminum alloys used in the type and number




Number
Reference


Alloy
Similar alloys
Characteristics of the alloy
Case


ADC 1
AI-Si
AA
A 413.0
Corrosion resistance, die casting, less resistant to pressure
Vehicle body frame, the front wheel, automatic bread lined


ADC 3
AI-Si-Mg
AA
A 360.0
Impact value and good pressure resistance, corrosion resistance whole family in an almost the same as casting pressure
Flywheel car cover, motorcycle crankcase, automotive flywheels, outboard propeller vane


ADC 5
AI-Mg
AA
518.0
Corrosion resistance, good high impact value of elongation, the casting is bad
Agricultural arm, outboard propulsion device Vane, fishing tackle, wrenches, reel, reel device


ADC 6
AI-Mg
AA
515.0
Corrosion resistance and the fifth are good, the casting than the fifth species a little better
Motorcycle brake handles, outboard propulsion device vane axle box, water pump, the disk device


ADC 10
AI-Si-Cu
AA
B 380.0
Mechanical properties, cutting and casting are excellent
Automobile carburetor, cylinder block, cylinder head, motorcycle shock absorber, engine crankcase, side cover, cylinder block, agricultural gearbox, crankcase cover, VCR, Block, photographic body, the body of power tools, cover, motorupper and lower lid rotor, car rack, and head and body, tackle body, the hinge device, gas regulator, distributor parts


ADC 10 Z
AI-Si-Cu
AA
A 380.0
Almost the same, and the tenth type casting embrittlement and corrosion resistance is poor


ADC 12
AI-Si-Cu
AA
383.0
Mechanical properties, cutting and casting are excellent


ADC 12 Z
AI-Si-Cu
AA
383.0
And 12 kinds of the same pillar shape mode crack resistance, the Ten Level casting good


ADC 14
AI-Si-Cu
AA
B390.0
Instant-resistant mold, good casting, pressure and so excellent, poor elongation
Car parts, clutch housing assembly with the pump body, locomotive buried







Die-casting aluminum alloys used in chemical composition







Cu
Si
Mg
Zn
Fe
Mn
Ni
Sn
Al


ADC 1
1.0以下
11.0-13.0
0.3以下
0.5以下
1.3以下
0.3以下
0.5以下
0.1以下
Other


ADC 3
0.6以下
9.0-10.0
0.4-0.8
0.5以下
1.3以下
0.3以下
0.5以下
0.1以下
Other


ADC 5
0.2以下
0.3以下
4.0-8.5
0.1以下
1.8以下
0.3以下
0.1以下
0.1以下
Other


ADC 6
0.1以下
1.0以下
2.5-4.0
0.4以下
0.8以下
0.4-0.6
0.1以下
0.1以下
Other


ADC 10
2.0-4.0
7.5-9.5
0.3以下
1.0以下
1.3以下
0.5以下
0.5以下
0.3以下
Other


ADC 10 Z
2.0-4.0
7.5-9.5
0.3以下
3.0以下
1.3以下
0.5以下
0.5以下
0.3以下
Other


ADC 12
1.5-3.5
9.6-12.0
0.3以下
1.0以下
1.3以下
0.5以下
0.5以下
0.3以下
Other


ADC 12 Z
1.5-3.5
9.6-12.0
0.3以下
3.0以下
1.3以下
0.5以下
0.5以下
0.3以下
Other


ADC 14
4.0-5.0
16.0-18.0
0.45-0.65
1.5以下
1.3以下
0.5以下
0.3以下
0.3以下
Other







Die-casting aluminum alloy casting and other features








Solidification temperature range ( ℃ )
Pressure made ​​of die-casting products
A variety of other features


Heat between the brittle
Tightness
Mold filling capacity
Non-modal melting with sexual
Corrosion resistance
Machinability
Abrasive
Electrical number of sexual
Anodized appearance
The strength of the skin mode.
Chemical acidification
High-temperature strength


General use
ADC 1
570-580
1
1
1
2
3
4
5
3
5
3
3


ADC 10
540-590
2
2
2
1
4
3
3
1
3
5
2


ADC 12
520-580
2
2
1
3
4
3
3
2
4
4
2


Special use
ADC 3
580-600
1
1
1
3
2
3
3
1
3
3
1


ADC 5
540-620
5
5
4
5
1
1
1
5
1
1
4


ADC 14
510-650
4
4
1
2
3
5
5
3
5
5
3





A variety of die-casting aluminum alloys used in the physical properties of






Project
Alloy types
General alloys
Special alloys


Number
ADC 1
ADC 10
ADC 12
ADC 3
ADC 5
ADC 14


The nature of the physical
Proportion

2.55
2.71
2.70
2.63
2.57
2.75


Melting point
K
858
883
835
873
913
923


Specific heat
J/gk
0.96
0.96
0.96
0.96
0.96



Coefficient of thermal expansion
(180-300℃)K
21X10
22X10
22X10
22X10
25X10
19.2X10



LACS%
31
23
23
29
24








Die-casting aluminum ingot type and number





Number
Reference


Alloy
Correspond JIS HS302


AD 1.1
AI-Si
ADC 1


AD 1.2


AD 3.1
AI-Si-Mg
ADC 3


AD 3.2


AD 5.1
AI-Mg
ADC 5


AD 5.2


AD 6.1
AI-Mg
ADC 6


AD 6.2


AD 10.1
AI-Si-Cu
ADC 10


AD 10.2


AD 10 Z.1
AI-Si-Cu
ADC 10 Z


AD 12.1
AI-Si-Cu
ADC 12


AD 12.2


AD 12 Z.1
AI-Si-Cu
ADC 12 Z


AD 14.1
AI-Si-Cu
ADC 14








Applications


Lock parts
Lighting fixtures
Hardware parts
Electronic parts
Bicycle / motorcycle / car spare parts

OEM parts and components according to customers' specifications



Cast to finish


CNC machining;
drilling / tapping / broaching / reaming / sanding / polishing / buffing / blast cleaning / vibrating / thermo-debarring / assembly / packaging / outside chemical finishing and painting.

Company: LIAN CHANG CASTING INC.
Telephone: 886-3-496-3377
Fax: 886-3-496-2288

Send inquiry to this company
