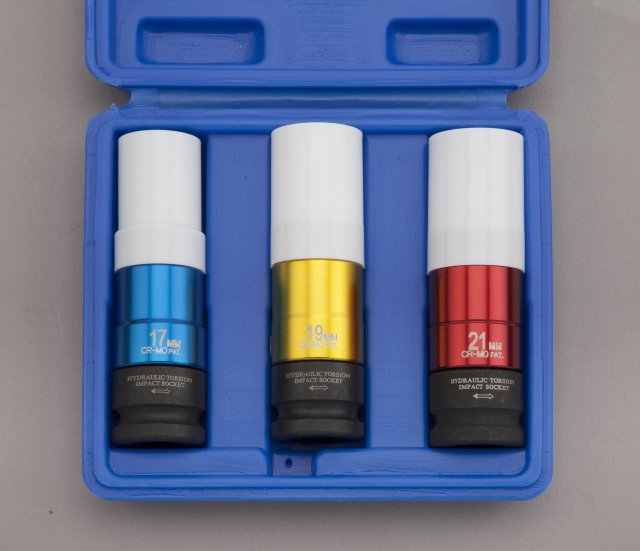

HYDRAULIC TORSION DUAL TORQUE IMPACT SOCKET
HYDRAULIC TORSION DUAL TORQUE IMPACT SOCKET

Model:CDH-C51

Detail Specifications / Descriptions

* 3PCS 17.19.21mm H.D.T. SOCKET
PAT.
1. Do not use hand tools.
2. Use with a 1/2" Dr. pneumatic or power impact wrench.
3. Set up the working air pressure at 90 Psi.(6.2 bar ; 6.3 kg / cm ; 62 Pa ), and ensure the power deliver of the impact
wrench between 190 ~ 210Nm. ( 140~155ft / lbs ) The output of the sockets will be 115 Nm ± 6% ( 85ft / lbs ± 6% )
4. If other Torque / Torsion required please reference the Torque / Torsion chart to set up the output of the impact wrench
and obtain the require Torque / Torsion value.
