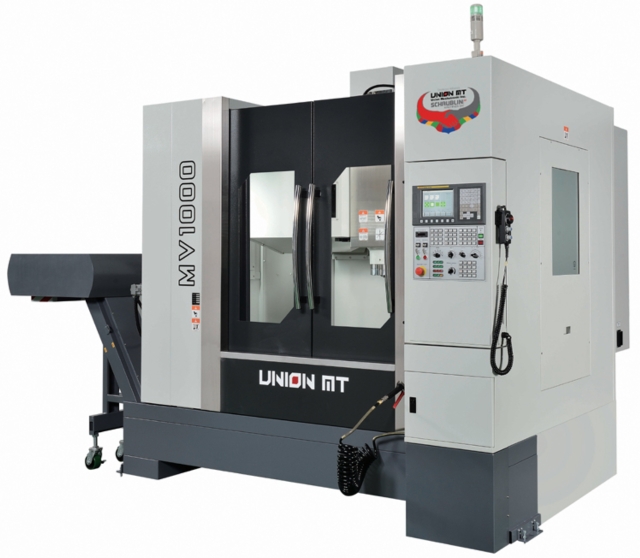

High Performance Vertical Machining Center
High Performance Vertical Machining Center

Model:MV1000 Country of Origin:Taiwan Material:Meehanite cast iron Color:To be advised

Detail Specifications / Descriptions

MV1000 series features the largest working range, Y axis travel 610mm and table size 1200x600mm suitable to various machining applications; the superior accuracy and longevity from excellent scrap skill available for higher precision and operating efficiency.

Standard swing arm ATC 24 tools with max. tool diameter 90 mm/180 mm, with/ without adjacent tool feature big surface milling and enable better surface roughness without surface gap.

Wider column span, heavy duty and high precision roller linear guides of 35/ 45/ 45 mm on X/Y/Z axis and large 45 mm diameter pretensioned ball screws can ensure transmission rigidity and machining stability.
