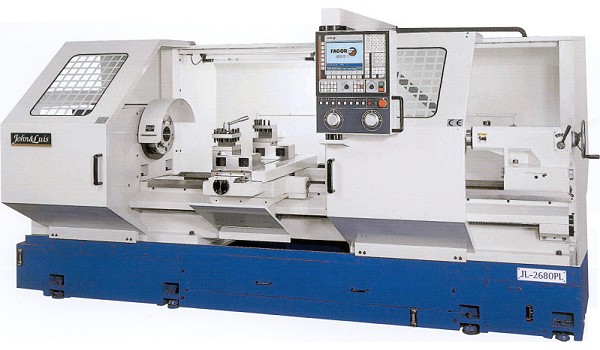

Model:FL-2660/2680/26120

Detail Specifications / Descriptions

Description:
FL-2660/2680/26120
DIMENSIONAL DRAWING


MODLE A B C
1840 2,190mm (86.2") 1,280mm (50.4") 1,900mm (74.8")
1860 2,710mm (106.7") 1,280mm (50.4") 1,900mm (74.8")
2140 2,190mm (86.2") 1,340mm (52.7") 1,935mm (76.2")
2160 2,710mm (106.7") 1,340mm (52.7") 1,935mm (76.2")
2660 3,795mm (149.4") 2,090mm (82.3") 1,920mm (75.6")
2680 4,295mm (169.1") 2,090mm (82.3") 1,920mm (75.6")
26120 5,295mm (208.5") 2,090mm (82.3") 1,920mm (75.6")

MODEL FL-2660 FL-2680 FL-26120
Swing over bed (mm/inch) Ø660/26"
Swing over cross slide (mm/inch) Ø370/14.5"
Center height (mm/inch) 330/13"
Distance between center (mm/inch) 1500/60" 2000/80" 3000/120"
Width of bed (mm/inch) 480/18.9"
Spindle speeds-4 steps (rpm) H1: 541~1200
H2: 166~540
L1: 76~165
L2: 25~75
Spindle nose A111 D111
Spindle bore (mm/inch) Ø 104/4.1"
Chuck size (inch) 15"
Longitudinal working stroke-Z axis (mm/inch) 1500/60" 2000/80" 3000/120"
Cross slide working stroke-Z axis (mm/inch) 400/15.7"
Topslide width (mm/inch) 140/5.5"
Size of toolpost shank (mm/inch) 32x32 / 1.3"x1.3"
Tailstock diameter (mm/inch) Ø 105/4.1"
Tailstock travel (mm/inch) 150 / 6"
Tailstock taper MT5
Spindle motor 15HP 20HP/25HP(optional)
Drives (X,Y) AC SERVO
Rapid traverse X/Z 5/10 m/min (200/400 ipm)
Range of feeds in manual mode 0.01~500 mm/rev
0.004~19.68 in./rev
Coolant pump motor 1/4 HP
Machine weight (kg/lbs) 5000/11000 5500/12100 6500/14300
Packing measurement app. (mm/inch)
2660: 3985x2240x2220/157"x88"x8734"
2680: 4485x2240x2220/176.6"x88"x87.4"
26120: 5485x2240x2220/216"x88"x87.4"
