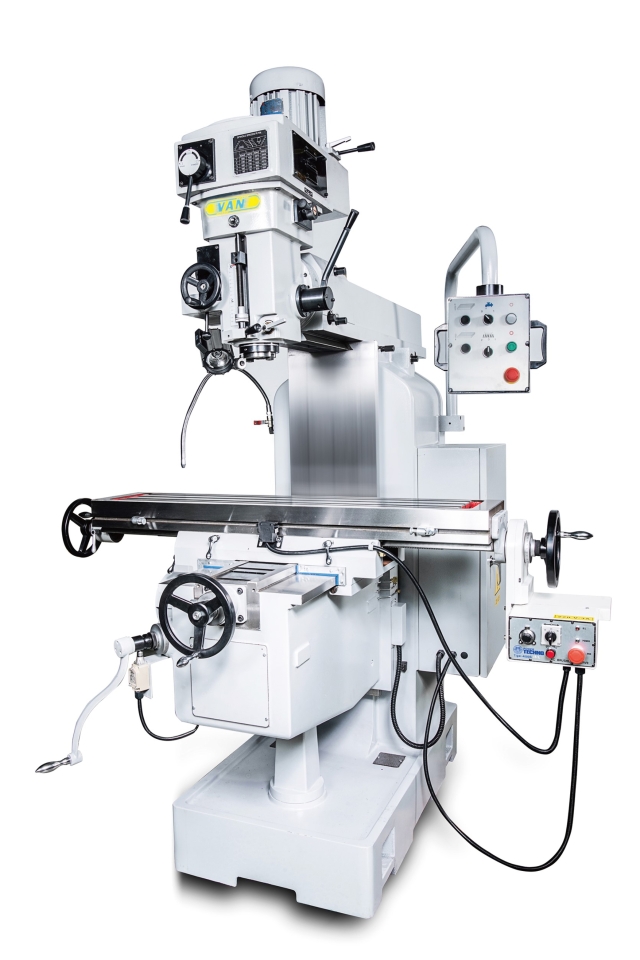

Vertical Turret Milling Machine
Vertical Turret Milling Machine Hot

Model:DM-6A Country of Origin:Taiwan Color:Customized Color Available

Detail Specifications / Descriptions

Model: DM-6A
NT#40 SPINDLE TAPER
SPINDLE SPEEDS---VARIABLE(Inverter)/10 SPEEDS
SPINDLE MOTOR---5HP(3.7kw)
TABLE SIZE---10” x 50”(254 x 1270mm)
HALOGEN WORK LIGHT
AUTO LUBRICATION SYSTEM
ELECTRIC CONTROL BOX
BALL SCREWS(C5 CLASS) ON X, Y AXIS
DRAW BAR-M16 THREADS
RUBBER CHIP COVER
TOOLS & TOOL BOX
OPERATION MANUAL
FLOOR SPACE(L x W x H)---2240x2470x2420mm
PACKING DIMENSION(L x W x H)---1730x1770x2000mm
MACHINE NET WEIGHT---1750KG
MACHINE GROSS WEIGHT---2050KG
